Case Study: 7.2.4 Dolby Atmos Architectural Home Cinema for Mr. Amit Bansal in IT City, Mohali
When designing a luxury home cinema, success is not determined by the price of the equipment alone. True cinematic performance is achieved when acoustics, room architecture, speaker placement, video engineering, and system calibration work together as a single ecosystem.
Recently, the AV Consultants team completed a fully customized 7.2.4 Dolby Atmos home cinema for Mr. Amit Bansal, owner of Brahmi Nature Delight, at his residence in IT City, Sector 82, Mohali. This project showcases how professional acoustic engineering and carefully selected architectural audio solutions can transform an ordinary room into a world-class entertainment environment.
From complete room acoustic treatment and concealed speaker integration to laser projection and immersive Dolby Atmos audio, every detail was designed to deliver a genuine commercial cinema experience within the comfort of a private residence.
Project Overview
Client: Amit Bansal
Location: IT City, Sector 82, Mohali
Room Size: 15 ft x 26 ft Dedicated Cinema Room
Configuration: 7.2.4 Dolby Atmos Home Cinema
Screen Size: 150 Inches
Projection System: Native 4K Laser Projection
Acoustic Design: Complete Professional Acoustic Treatment
Executed By: AV Consultants

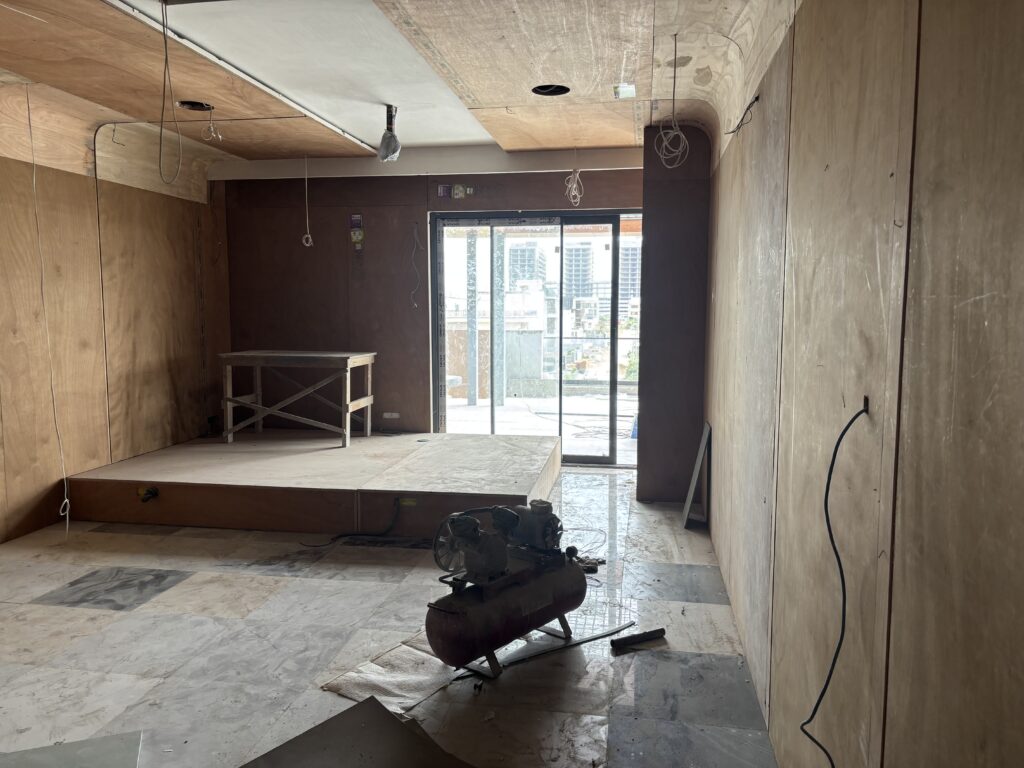

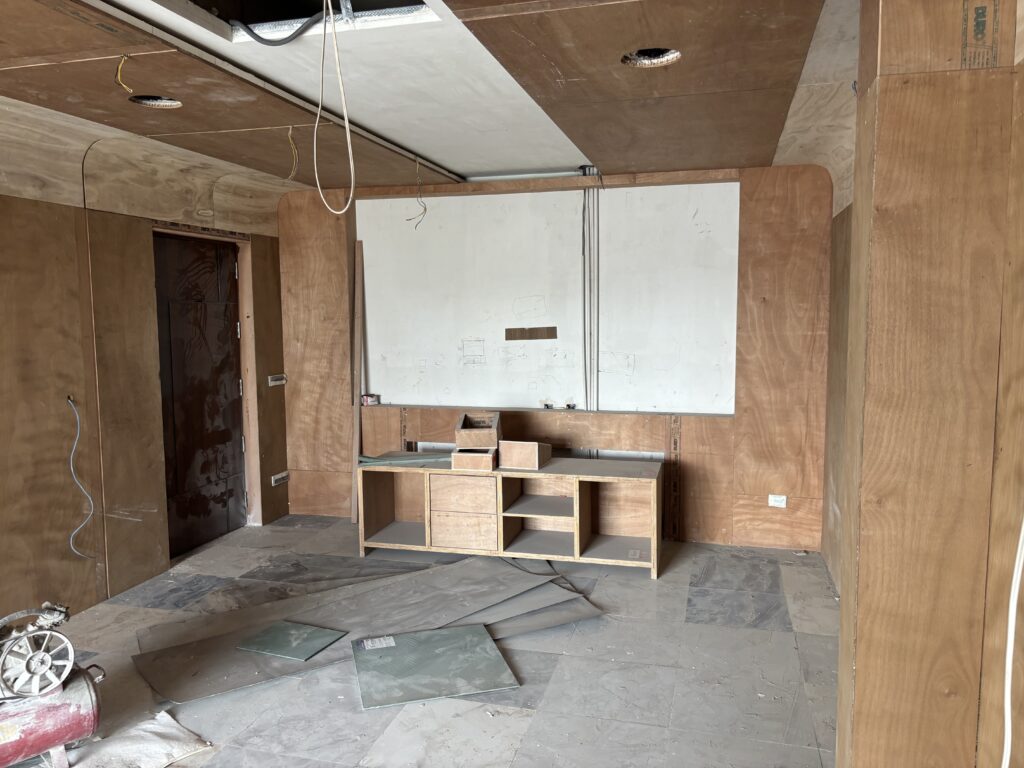

Understanding the Room
Every successful home cinema begins with understanding the room itself.
Mr. Bansal’s dedicated theater measures approximately 15 feet wide and 26 feet long, providing an excellent foundation for a premium cinema installation. The elongated room dimensions allow proper speaker spacing, multiple seating positions, improved surround imaging, and better low-frequency management.
Rather than filling the room with visible floor-standing speakers and bulky equipment, the objective was to create a clean, minimalist aesthetic where the technology disappears and only the cinematic experience remains.
The design goals included:
- Hidden architectural speakers
- Professional acoustic treatment
- Reference-quality Dolby Atmos performance
- Large-format cinematic visuals
- Seamless room aesthetics
- Powerful yet controlled bass performance
- Long-term reliability and upgrade flexibility

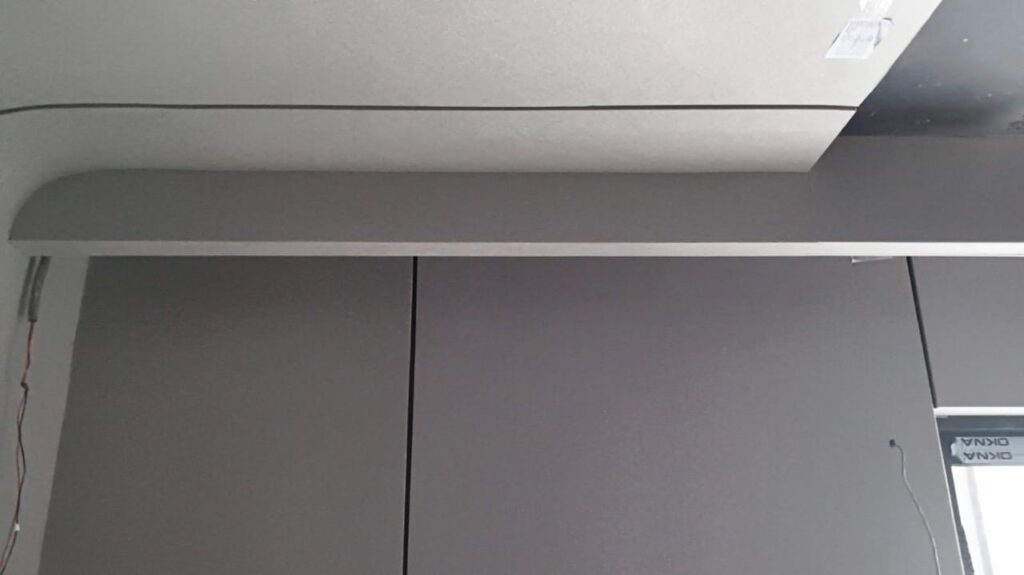

Complete Acoustic Engineering
One of the biggest mistakes in home theater design is investing heavily in equipment while ignoring room acoustics.
Even the finest speakers and amplifiers cannot perform properly in an untreated room. Sound reflections, standing waves, flutter echoes, and excessive reverberation can significantly reduce clarity and immersion.
For this project, AV Consultants designed and installed a complete acoustic treatment package covering the critical surfaces of the room.
Front Reflection Control
The front section of the room was engineered to absorb unwanted early reflections that typically interfere with dialogue intelligibility and front-stage imaging.
This allows:
- Better vocal clarity
- Sharper soundstage focus
- More accurate panning effects
- Enhanced center channel performance
Side Wall Treatment
Strategically positioned acoustic panels control lateral reflections while maintaining spaciousness.
Benefits include:
- Improved surround envelopment
- Reduced listening fatigue
- Better imaging precision
- More natural sound reproduction
Rear Wall Diffusion
Instead of over-absorbing the rear section of the room, carefully designed diffusion techniques were incorporated to preserve ambience and create a larger perceived soundstage.
This approach prevents the room from sounding acoustically “dead” while maintaining excellent control.
Acoustic Ceiling with Star Lighting
One of the most visually striking features of this cinema is the custom acoustic ceiling integrated with star lighting.
The ceiling serves two important purposes:
Acoustic Performance
It reduces vertical reflections between the floor and ceiling, improving overall clarity.
Luxury Aesthetics
The star-lit ceiling transforms the room into a premium cinematic environment, creating a stunning visual effect before the movie even begins.
The result is a room that looks luxurious while simultaneously enhancing audio performance.
The Audio System: Architectural 7.2.4 Dolby Atmos
To achieve a truly immersive experience while maintaining a clean design, AV Consultants selected high-performance architectural speakers throughout the room.
The Audio Architecture: A Discreet 7.2.4 Dolby Atmos Powerhouse
To achieve Mr. Bansal’s requirement for an invisible home theater, we utilized high-performance architectural in-wall and in-ceiling speakers. This layout ensures total structural integration without compromising an inch of floor space.
| Speaker Placement | Model | Quantity | Purpose |
| Front LCR | Mi 801 In-Wall | 3 Pcs | Dedicated Left, Center, and Right channels for pinpoint screen imaging and crisp dialogue. |
| Surrounds | WWS 80 In-Wall | 4 Pcs | Dedicated Side and Back surround channels for seamless 360-degree panning. |
| Atmos Overhead | WCM 80 In-Ceiling | 4 Pcs | Overhead channels to produce true three-dimensional object-based audio. |
| Subwoofers | SW12 Active Powered | 2 Pcs | Dual-subwoofer configuration engineered to eliminate room modes and deliver linear bass. |

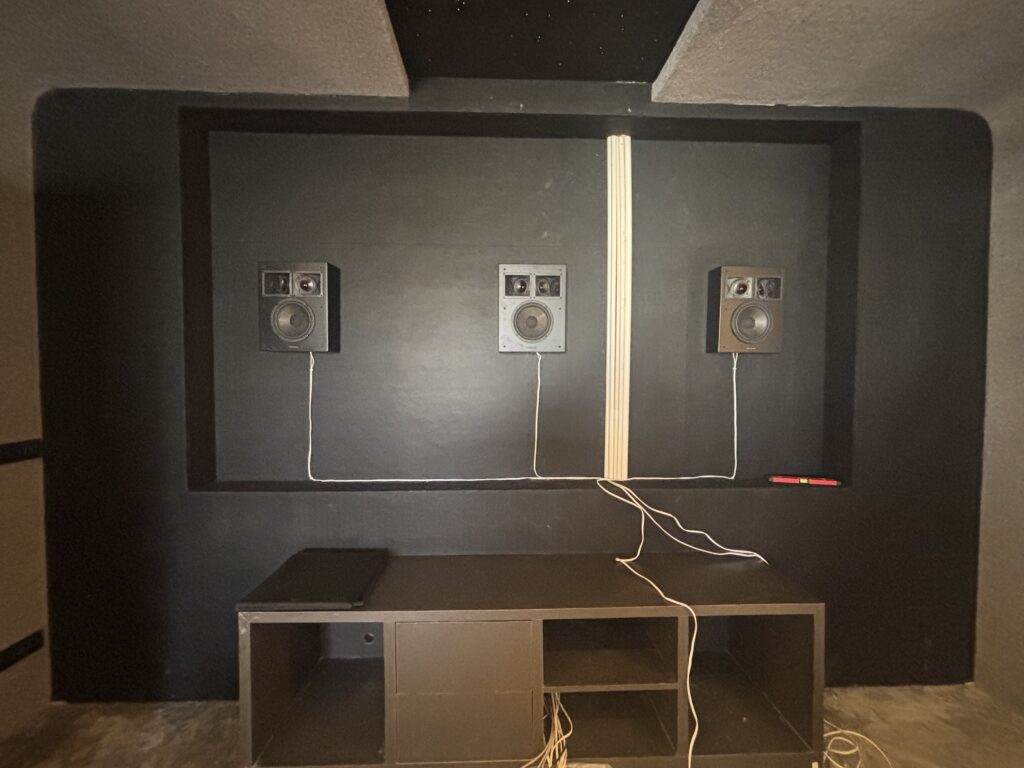

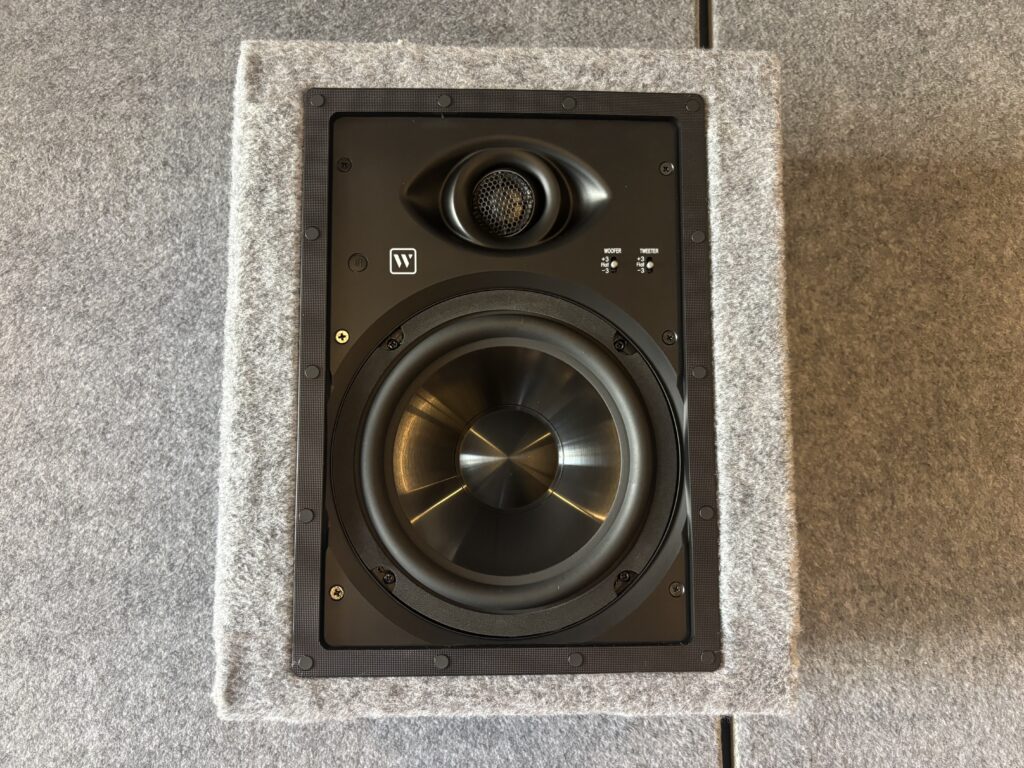

Front Stage Speakers
MI 801 In-Wall Cinema Speakers (3 Units)
The front Left, Center, and Right channels are powered by three MI 801 in-wall cinema speakers.
Unlike traditional installations where speakers are placed beside or below the screen, these speakers are strategically positioned behind the acoustically transparent projection screen.
Advantages include:
- Perfect dialogue localization
- Seamless front soundstage
- Professional cinema presentation
- Cleaner room aesthetics
When an actor speaks on screen, the sound appears to originate directly from the image itself, exactly as intended in commercial cinemas.

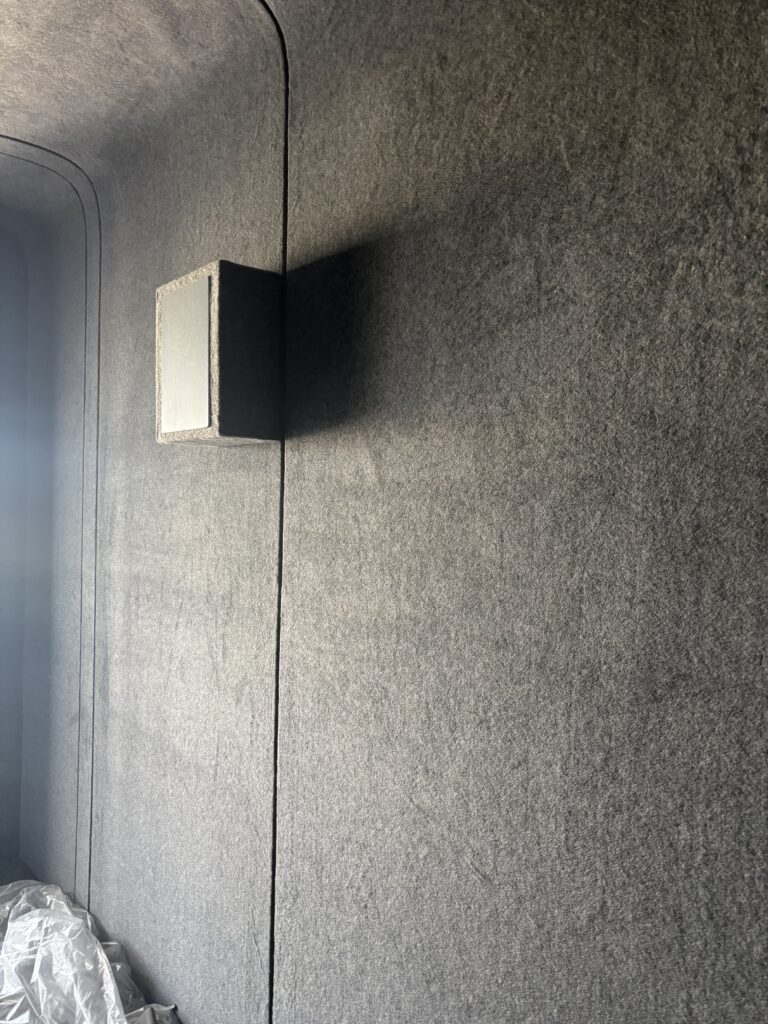

Surround Speakers
WWS 80 In-Wall Speakers (4 Units)
The surround system consists of four WWS 80 in-wall speakers.
Configuration:
- Side Surround Left
- Side Surround Right
- Rear Surround Left
- Rear Surround Right
These speakers create a fully immersive 360-degree sound field, allowing effects to move naturally around the audience.
Whether it’s rainfall, aircraft flyovers, or action sequences, the listener remains fully surrounded by sound.

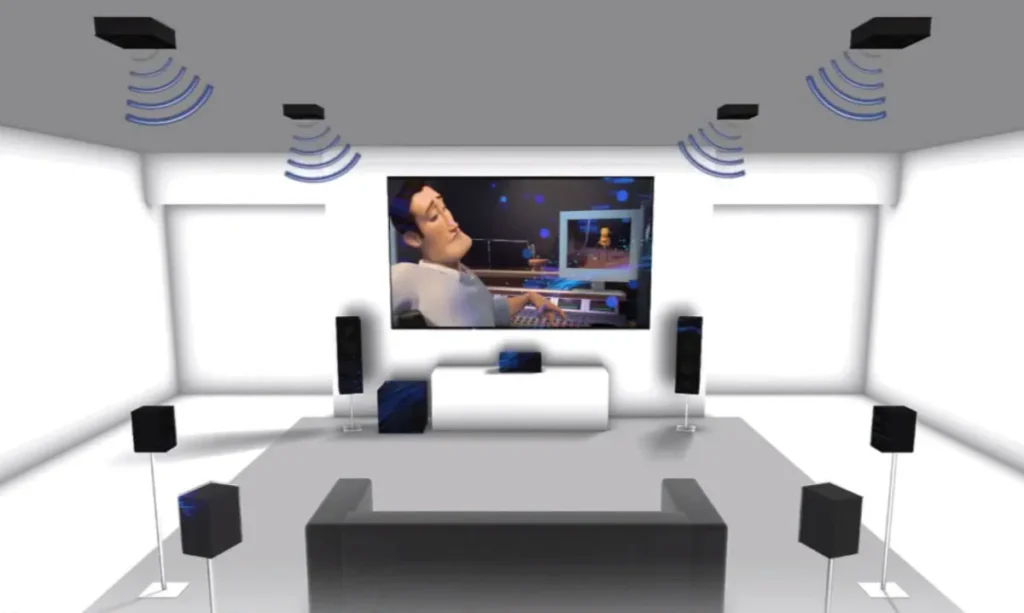

Dolby Atmos Speakers

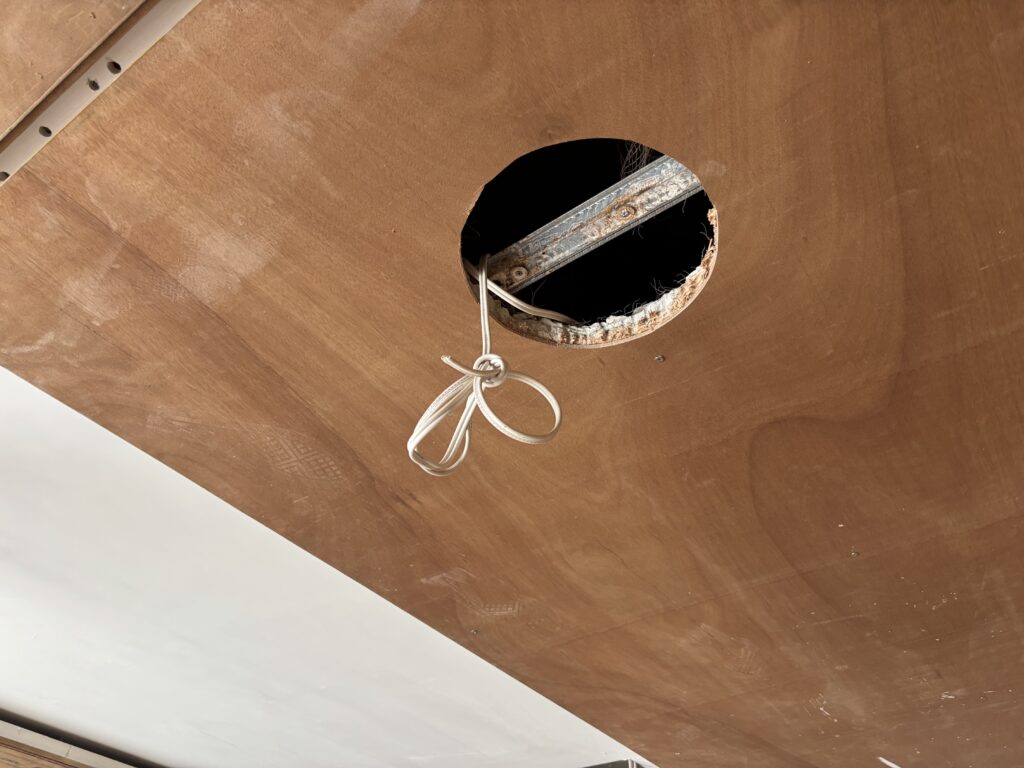

WCM 80 In-Ceiling Speakers (4 Units)
For true object-based audio reproduction, four WCM 80 ceiling speakers were installed.
These dedicated Atmos channels create overhead sound effects that add a third dimension to the listening experience.
Examples include:
- Helicopters flying overhead
- Thunderstorms
- Aircraft movement
- Environmental ambience
- Dynamic action scenes
Together with the surround system, these speakers create a complete Dolby Atmos sound dome.
Dual Subwoofer Performance
SW12 Active Powered Subwoofers (2 Units)
Low-frequency reproduction is one of the most challenging aspects of cinema design.
Using a single subwoofer often results in:
- Bass hotspots
- Weak bass zones
- Standing wave issues
- Inconsistent performance across seats
To solve these challenges, AV Consultants installed dual SW12 powered subwoofers.
Benefits include:
- More even bass distribution
- Better seat-to-seat consistency
- Reduced room mode issues
- Increased impact and headroom
- Faster and tighter bass response
The result is deep, powerful bass that can be felt throughout the room without becoming boomy or overwhelming.
Electronics & System Control
Marantz Cinema 30
At the heart of the system is the Marantz Cinema 30 11.2-channel AV receiver.
Known for its premium build quality and audiophile-grade performance, the Cinema 30 delivers:
- High-current amplification
- Dolby Atmos processing
- DTS:X support
- Advanced room calibration
- Exceptional musicality
- Reliable long-term operation
The receiver serves as the command center for the entire cinema system.
Apple TV 4K (128GB)
For content streaming and playback, the system utilizes Apple TV 4K.
Benefits include:
- Ultra-fast user interface
- Native 4K playback
- Dolby Atmos support
- HDR streaming
- Access to major streaming platforms
This provides a smooth and premium user experience for daily entertainment.
The Visual Experience
A premium audio system deserves an equally impressive visual presentation.
For this reason, AV Consultants selected a professional-grade laser projection system paired with a large-format acoustically transparent screen.

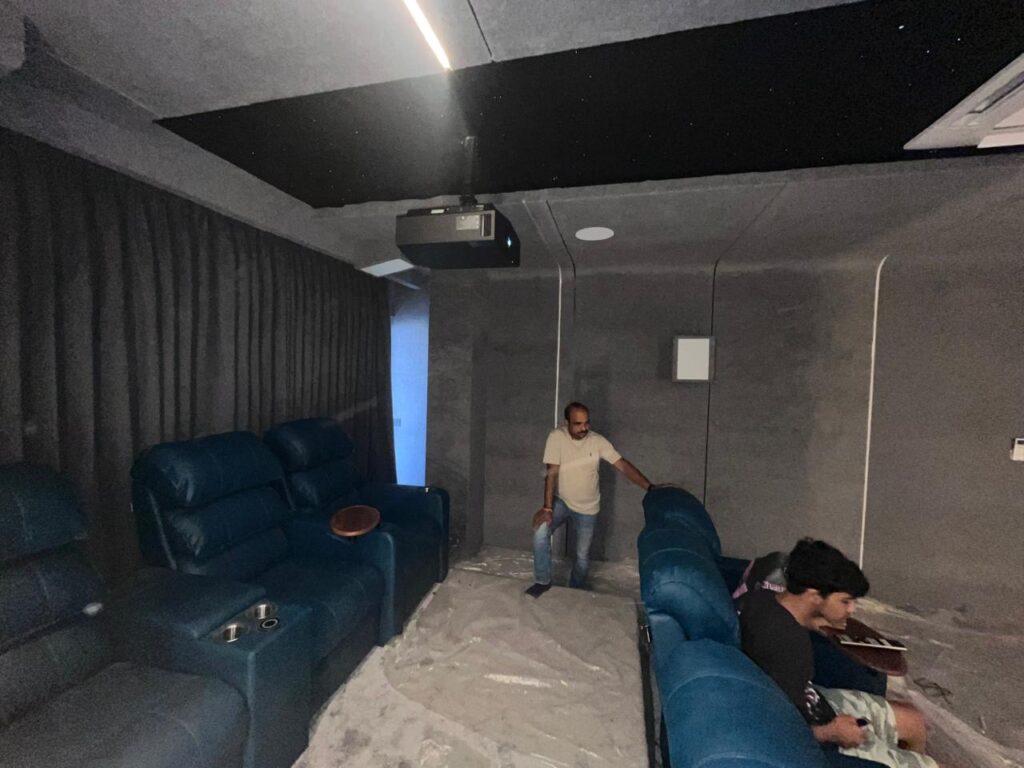

Sony XW5000ES Native 4K Laser Projector
The Sony XW5000ES is one of the most respected native 4K laser projectors available today.
Key advantages include:
- Native 4K resolution
- Laser light source
- Excellent HDR performance
- Deep black levels
- Outstanding color accuracy
- Long operational lifespan
The projector produces a highly detailed image with exceptional contrast and cinematic realism.

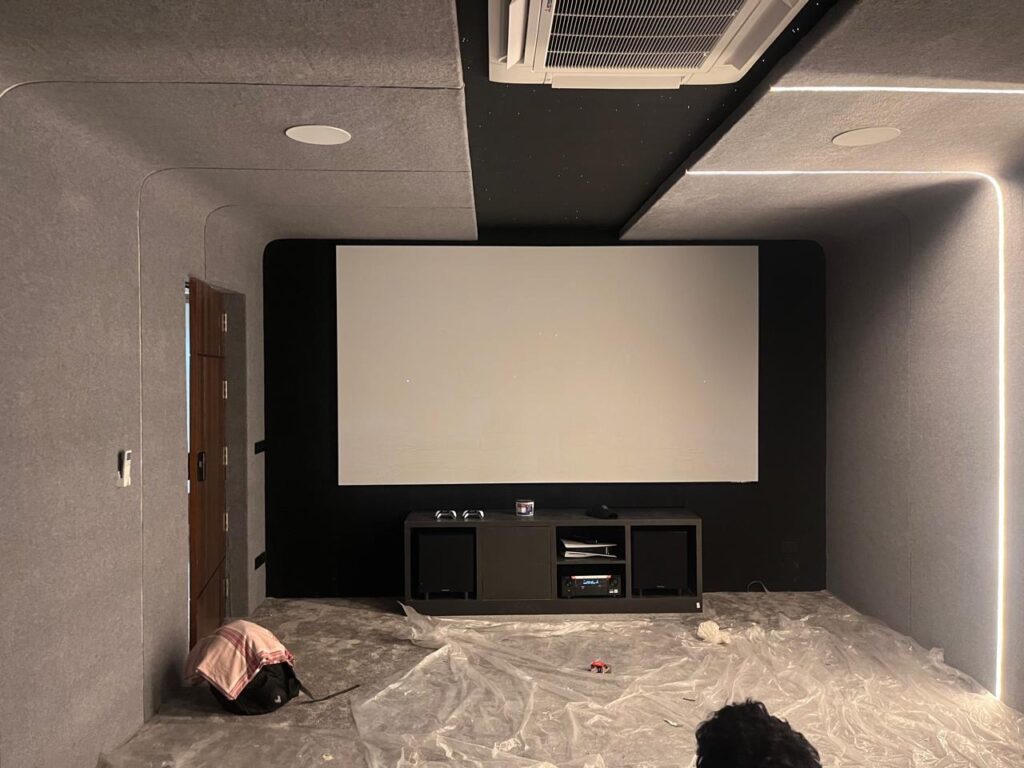

Elite Screens Aeon 150-Inch Perforated 4K/8K Screen
The visual centerpiece of the room is the massive 150-inch Elite Screens Aeon perforated projection screen.
Why Perforated?
Unlike conventional screens, perforated screens allow sound to pass through the screen material.
This enables the front speakers to be positioned directly behind the image, replicating the setup used in commercial cinemas.
Benefits include:
- Accurate dialogue placement
- Cleaner room appearance
- Better front-stage integration
- True cinematic presentation
The screen is fully compatible with both 4K and 8K content while maintaining excellent brightness and viewing angles.
Custom Cabinetry & Finishing
Every premium cinema requires thoughtful equipment integration.
A custom-built wooden equipment cabinet was designed specifically for this room, providing:
- Equipment ventilation
- Easy service access
- Cable management
- Clean aesthetics
- Long-term durability
The cabinetry complements the room’s modern design while keeping all electronics organized and protected.

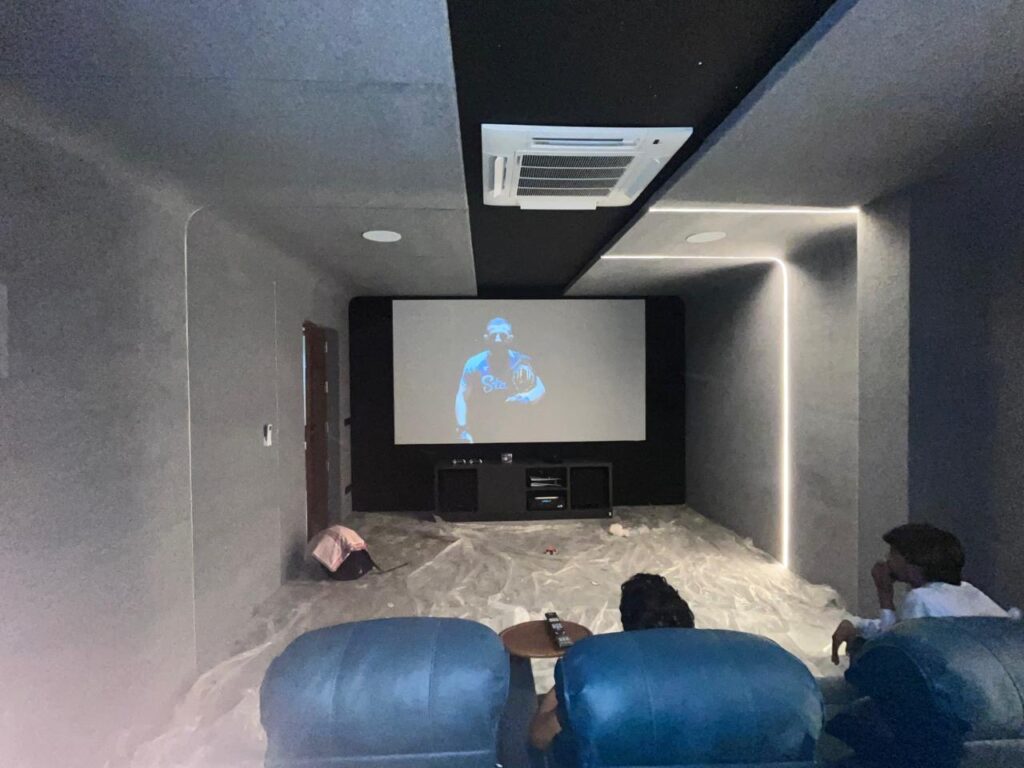

Final Result
The completed cinema successfully achieves everything envisioned at the beginning of the project:
✓ Professional Acoustic Treatment
✓ Hidden Architectural Speaker Design
✓ True 7.2.4 Dolby Atmos Immersion
✓ Dual Subwoofer Performance
✓ Native 4K Laser Projection
✓ 150-Inch Acoustically Transparent Screen
✓ Premium Star Lighting Ceiling
✓ Clean Luxury Aesthetic
✓ Reference-Level Home Cinema Experience
Most importantly, the technology disappears into the room, allowing viewers to focus entirely on the movie experience.
Why This Project Matters
This installation demonstrates an important principle:
Great home cinemas are engineered, not simply assembled.
The difference between a room filled with expensive equipment and a professionally designed cinema lies in acoustics, speaker placement, calibration, and system integration.
By combining architectural audio, acoustic science, laser projection technology, and meticulous attention to detail, AV Consultants delivered a cinematic environment that rivals many commercial theaters.
