Luxury Home Cinema Installation in Kharar: A 7.2.2 Dolby Atmos Experience by AV Consultants

Creating a premium home cinema is not simply about buying expensive speakers, a projector and comfortable recliners. A truly immersive home cinema installation requires careful planning of the room, acoustics, speaker placement, screen size, projector position, calibration and seating.

At AV Consultants, every home cinema project begins with understanding the client’s room, lifestyle and expectations. For Mr. Sandeep Singh in Sunny Enclave, Kharar Punjab. , our team designed and executed a dedicated 7.2.2 Dolby Atmos home cinema in a 21× 14 ft room, transforming a residential space into a private cinematic environment.

The project combined a carefully selected Jamo speaker system, dual Definitive Technology subwoofers, a BenQ TK710 projector, a 135-inch ES Screen, Denon AVR-X3800H and seven recliners. Most importantly, the room was acoustically treated and professionally calibrated to bring all these components together as one complete system.

A Home Cinema Designed Around the Room

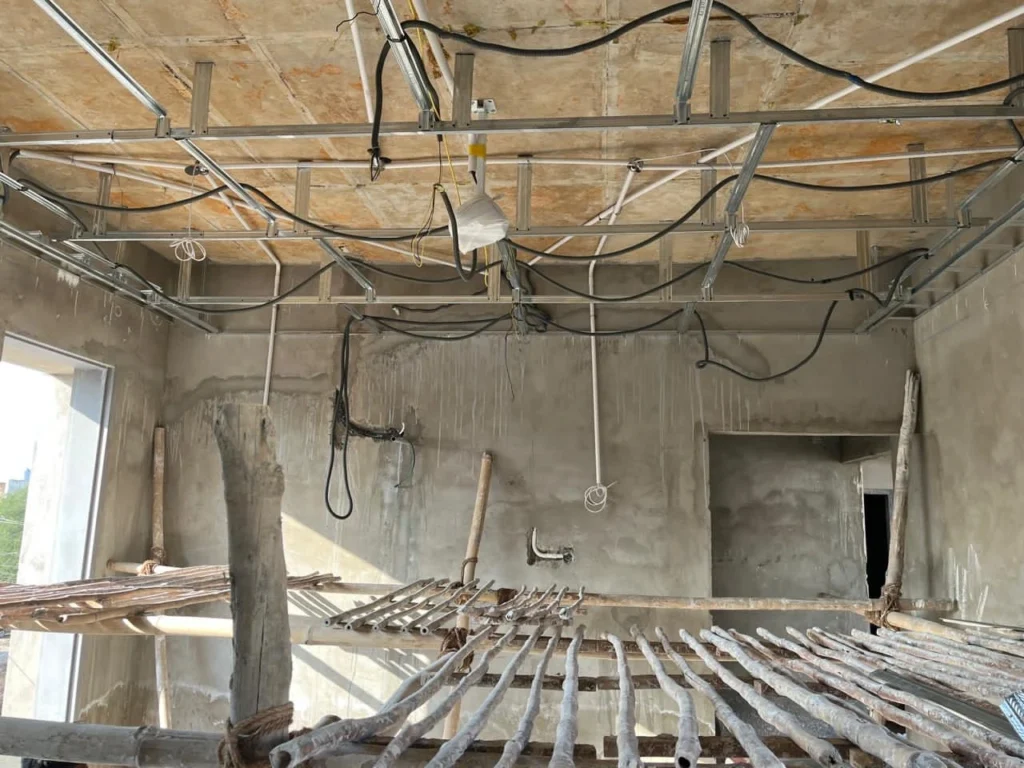

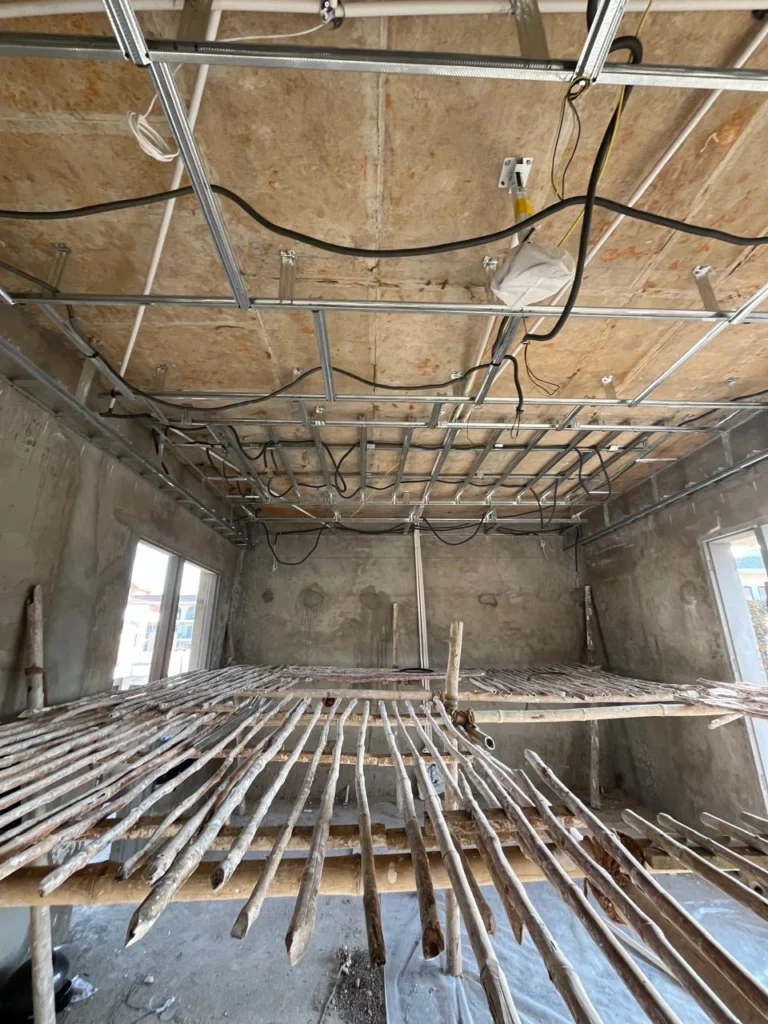

The room measured 21 × 14 feet and included two windows and two doors. These architectural features can create challenges for both acoustics and speaker placement.

Rather than treating the room as an empty box and simply installing equipment, AV Consultants approached the project from a room-design perspective. Speaker locations, listening positions, acoustic treatment, screen placement and equipment integration were considered together.

This is an important part of our philosophy: the equipment should be designed around the room, not the room forced around the equipment.

The objective was to create a comfortable family entertainment space that could deliver an immersive experience for movies, sports, music and gaming.

Acoustic Treatment: The Foundation of Better Sound

One of the most important elements of this installation was the acoustic treatment of the walls and doors.

A home cinema with untreated parallel walls and hard surfaces can experience unwanted reflections, flutter echoes and uneven bass response. Windows and doors can introduce additional acoustic challenges. The project therefore required careful treatment of the room rather than relying solely on the performance of the speakers.

AV Consultants implemented precision acoustic treatment at important reflection areas, along with treatment and sealing around the doors. Strategic acoustic treatment helps control unwanted reflections and contributes to improved dialogue clarity, imaging and overall balance.

Low-frequency management was also considered through strategic placement of acoustic absorption and bass-control elements.

The purpose of acoustic treatment is not to make a room simply look like a cinema. Its purpose is to allow the audio system to perform more consistently and naturally.

7.2.2 Dolby Atmos Speaker System

At the heart of the installation is a 7.2.2 Dolby Atmos configuration, powered by a Denon AVR-X3800H.

The speaker system was carefully selected to create a coherent front soundstage, enveloping surround field and overhead Dolby Atmos layer.

Front Left and Right – Jamo S27F

The front soundstage uses Jamo S27F floor-standing tower speakers for the left and right channels.

These speakers establish the main stereo and cinematic soundstage, delivering scale and dynamics for movies and music.

Centre Channel – Jamo S43C

The Jamo S43C centre speaker handles the critical centre-channel duties.

Dialogue is one of the most important elements of any movie soundtrack. Proper centre-speaker positioning helps ensure that voices remain clear and anchored to the screen, whether the scene is a quiet conversation or a high-energy action sequence.

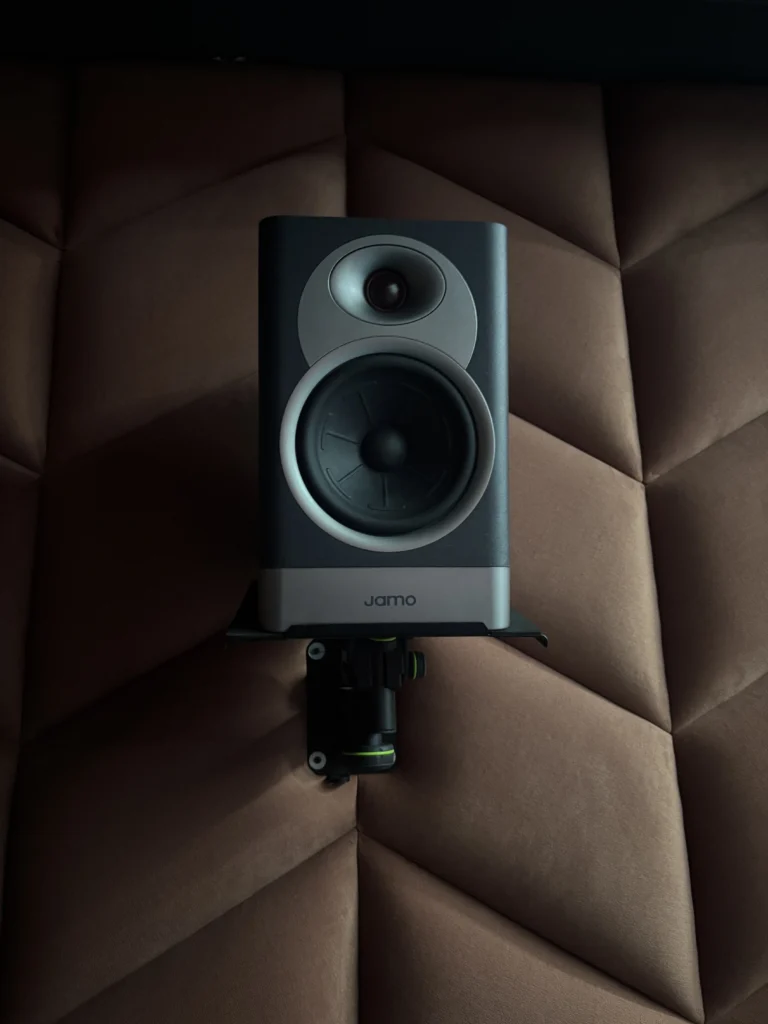

Surround Channels – Jamo S17B

For the surround channels, Jamo S17B bookshelf speakers were mounted using Gravity wall-mount stands.

The wall-mounted installation provides a clean appearance while allowing the speakers to be positioned appropriately around the seating area.

Rear Surround – Jamo E4

The rear surround channels use Jamo E4 speakers, helping extend the surround field behind the audience.

Together, the side and rear surround speakers create a more enveloping soundstage and allow movie effects to move naturally around the listening area.

Dolby Atmos Height – Jamo 608C

The overhead channels use Jamo 608C ceiling speakers.

These speakers add the vertical dimension that makes Dolby Atmos different from conventional surround sound. Effects such as aircraft, rain, helicopters and atmospheric sounds can be reproduced from above, creating a more three-dimensional listening experience.

Dual Definitive Technology DN10 Subwoofers

For low-frequency performance, AV Consultants installed two Definitive Technology DN10 subwoofers.

Using two subwoofers in a dedicated home cinema can help produce more consistent bass throughout the seating area than relying on a single subwoofer. Careful positioning and calibration are important because room acoustics strongly influence low-frequency performance.

The dual-subwoofer arrangement gives the system the foundation required for action movies, cinematic effects and music while supporting better integration with the main speaker system.

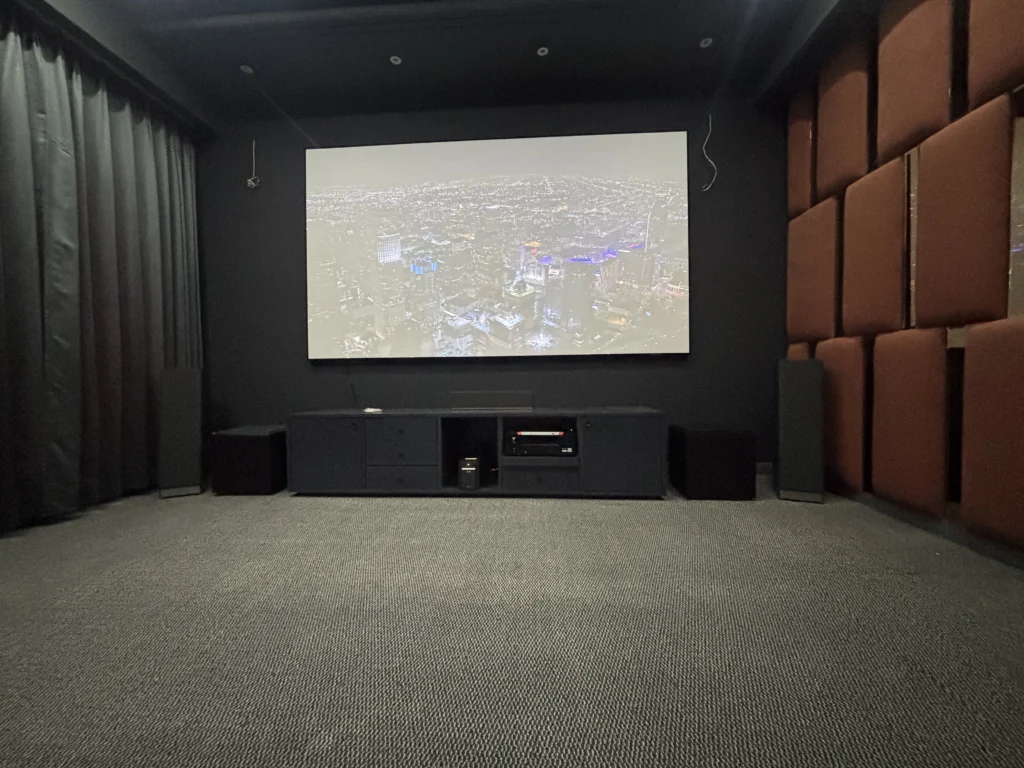

BenQ TK710 and 135-Inch ES Screen

The visual system is built around a BenQ TK710 projector paired with a 135-inch HD Matt White screen from ES Screen.

The large 135-inch screen provides the scale expected from a dedicated private cinema while being appropriate for the room’s dimensions and seating arrangement.

Screen size cannot be considered independently from viewing distance, projector placement and room geometry. AV Consultants therefore considered the complete visual chain when planning the installation.

The result is a large-format viewing experience suitable for movies, sports, gaming and family entertainment.

Denon AVR-X3800H: The Control Centre

The Denon AVR-X3800H forms the central processing and amplification platform for the cinema.

It connects and manages the various components of the system while supporting the 7.2.2 Dolby Atmos configuration.

However, premium equipment alone does not guarantee premium performance. Speaker distances, levels, crossover settings, subwoofer integration and room correction all need to be properly configured.

This is where professional installation and calibration become extremely important.

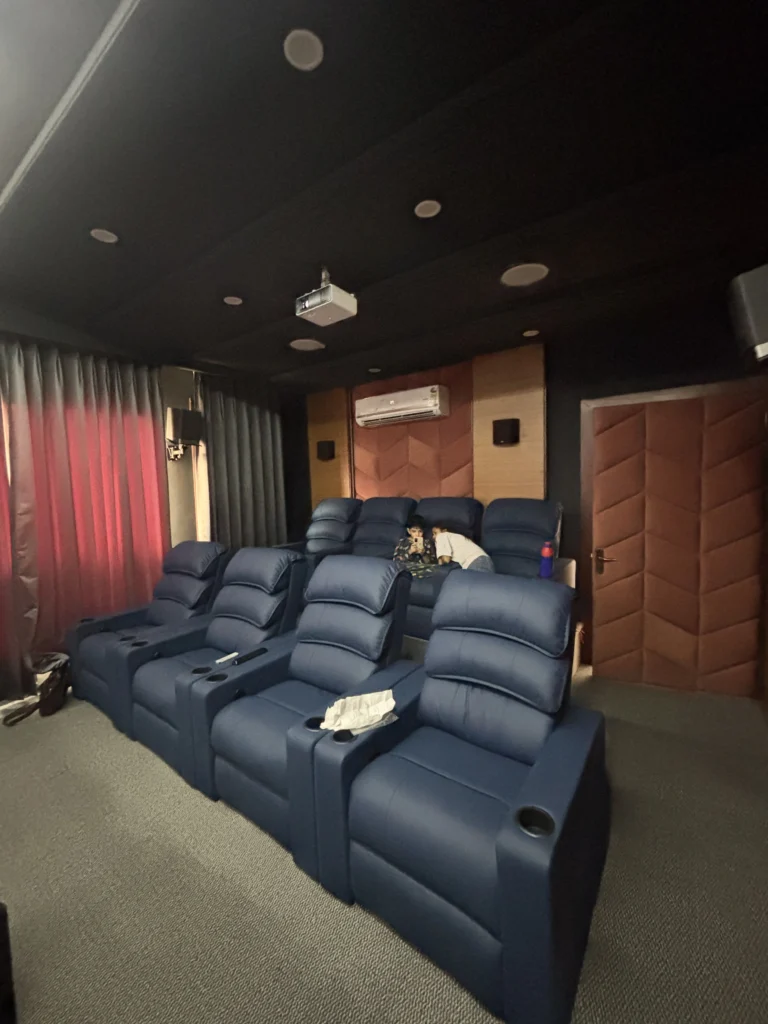

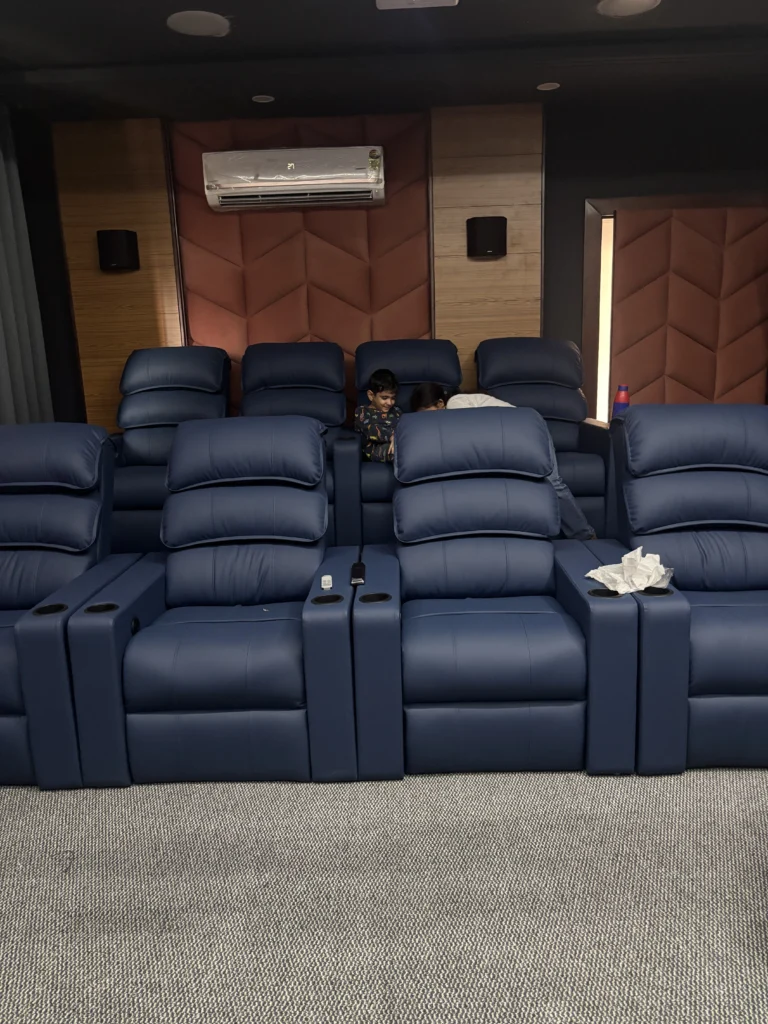

Seven Recliners for Family Entertainment

Comfort was another major consideration in Mr. Sandeep Singh’s home cinema.

AV Consultants installed seven dedicated recliners, giving the family individual seating positions for movie nights and entertainment.

The seating arrangement was planned together with the screen and speaker locations so that the audience could remain within the intended viewing and listening area.

A successful home cinema should combine performance and comfort. The technology should disappear into the experience rather than becoming the focus of the room.

Deepak Saxena’s Personal Involvement

At AV Consultants, we believe that a home cinema is a highly personal project. Every room has different dimensions, acoustic characteristics and client requirements.

Deepak Saxena, Founder of AV Consultants, personally remains involved in every project, from understanding the client’s requirements and planning the system to reviewing speaker placement, acoustic treatment, equipment integration and final calibration.

With extensive experience in the AV industry, Deepak’s approach focuses on finding the right solution for the room rather than simply recommending equipment based on brand or price.

This hands-on involvement is particularly important when multiple components from different manufacturers need to work together as one seamless home cinema system.

The Final Result

Once installation, acoustic treatment, speaker positioning and system calibration were completed, the 21 × 14 ft room was transformed into a dedicated private cinema.

The finished system combines:

• 7.2.2 Dolby Atmos
• Jamo S27F front tower speakers
• Jamo S43C centre speaker
• Jamo S17B surround speakers
• Jamo E4 rear surround speakers
• Jamo 608C Dolby Atmos ceiling speakers
• 2 × Definitive Technology DN10 subwoofers
• Denon AVR-X3800H
• BenQ TK710 projector
• 135-inch HD Matt White ES Screen
• Apple TV128GB
• 7 luxury recliners
• Precision acoustic treatment for walls and doors

The result is not simply a collection of AV products. It is a complete entertainment environment designed around the room and the client’s expectations.

Why Choose AV Consultants for Home Cinema Installation?

A successful home cinema requires more than product knowledge. It requires an understanding of room acoustics, speaker positioning, visual geometry, system integration and calibration.

At AV Consultants, our approach is built around these principles. We work with multiple leading AV brands and focus on selecting the right combination of equipment for each individual project.

From home cinema design and acoustic treatment to projector installation, speaker installation, AV receiver configuration and final calibration, our objective is to deliver a complete solution rather than simply sell equipment.

The Sunny Enclave, Kharar project for Mr. Sandeep Singh is a clear example of this approach: a carefully planned room, immersive Dolby Atmos audio, dual-subwoofer bass, a large-format projection system, comfortable seating and precision acoustics brought together under one professionally integrated system.

If you are planning a home cinema in Kharar, Mohali, Chandigarh or the wider Tricity region, AV Consultants can help you design a system around your room, budget and entertainment requirements.
