Modern luxury residential architecture is shifting away from traditional televisions and intrusive sandbars. Discerning homeowners now demand immersive cinematic entertainment that integrates invisibly with bespoke interiors.

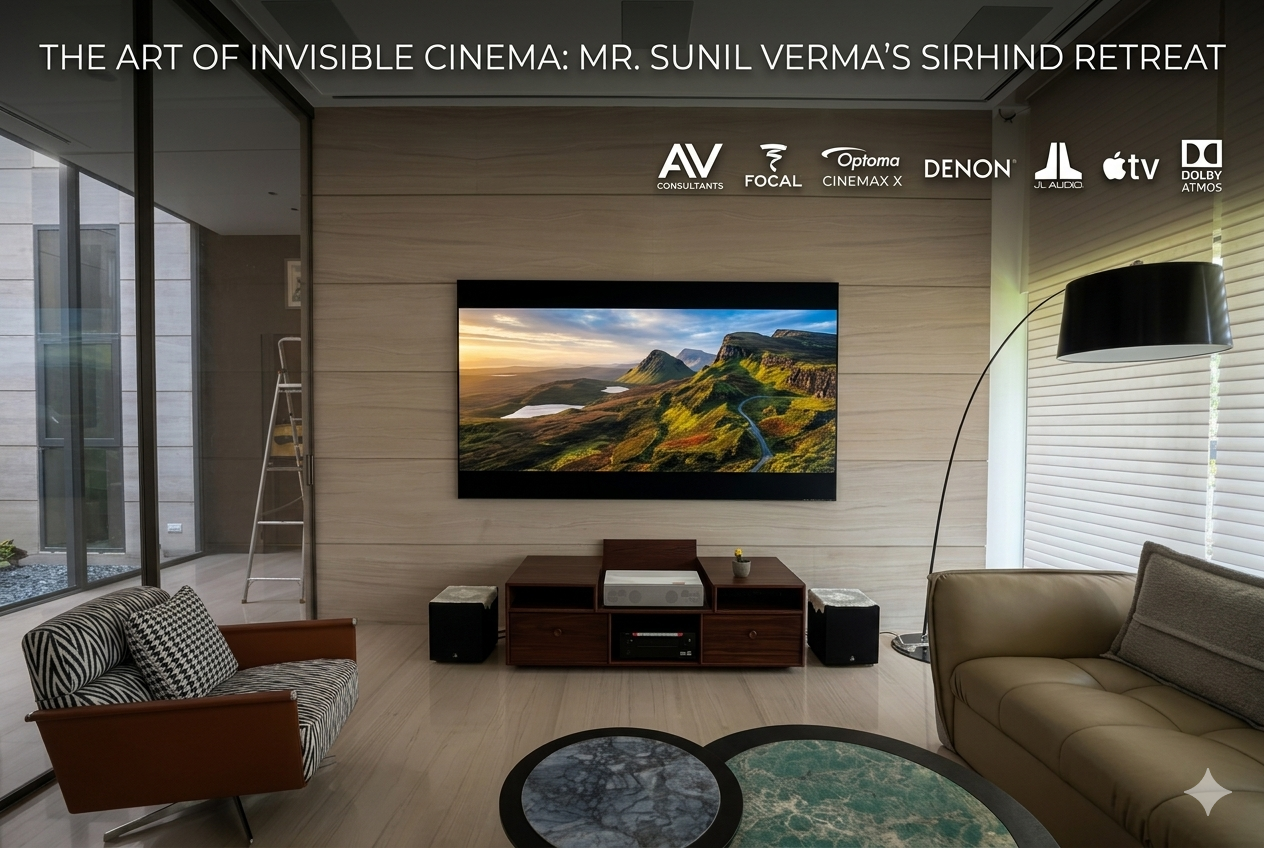

Recently, Team AV Consultants designed and executed a high-performance 5.2.2 Dolby Atmos Home Cinema System for Mr. Sunil Verma, in Sirhind, Punjab. Integrated into a ground-floor formal sitting lounge, this project demonstrates how elite AV engineering can coexist with minimalist luxury aesthetics.
Google Reviews
(“100% satisfied with the sound quality. Earlier, we never used to watch movies at home, but now we watch a movie every day together and enjoy sitting as a family. Deepak ji is a reliable person. He guided us genuinely, and we are very happy with the products he installed. You can also trust him in today’s time.”)
Project Overview
- Client: Mr. Sunil Verma
- Location: Sirhind, Punjab
- Space: Ground Floor Formal Lounge
- System Layout: 5.2.2 Dolby Atmos Immersive Audio
- Design & Execution: Team AV Consultants
Engineering Challenges & Design Strategy
Integrating a premium theater into a formal lounge presents a distinct architectural challenge: delivering commercial-grade cinematic dynamics without introducing visual clutter.
To preserve the room’s interior design, AV Consultants implemented a hidden speaker architecture and an Ultra Short Throw (UST) projection layout, ensuring the entire system remains visually discreet until activated.
High-Performance Component Breakdown
1. Ultra-Short Throw 4K Projection

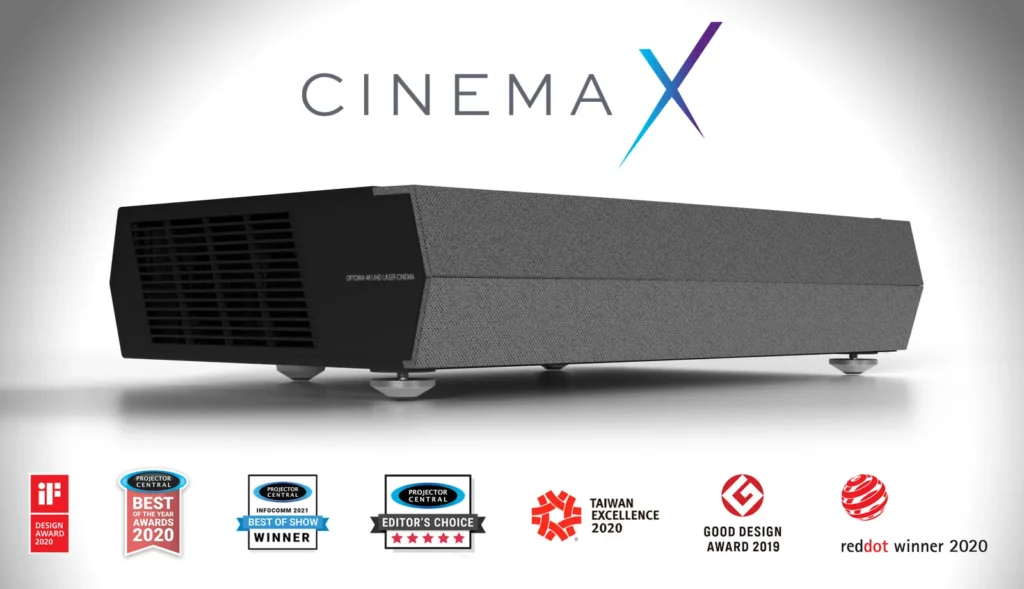

- Optoma CinemaX D2+ UST Laser Projector: Positioned mere inches from the wall, this laser light source eliminates bulky ceiling mounts, providing crisp 4K UHD resolution and high ambient light performance.
- Elite Screens (ES) 120-Inch CLR Screen: Utilizing Ceiling Light Rejecting technology, this surface filters out ambient overhead light, maintaining deep black levels and sharp contrast during daytime viewing.
2. Amplification & Source
- Denon AVR-X4800H AV Receiver: This premium receiver handles precise Dolby Atmos decoding, advanced room calibration, and high-current amplification to drive the architectural speaker array effortlessly.
- Apple TV 4K (128GB): Serving as the primary source, it delivers bitstream Dolby Atmos and Dolby Vision HDR across all major premium OTT streaming platforms.
3. Invisible Focal Architectural Speaker Array

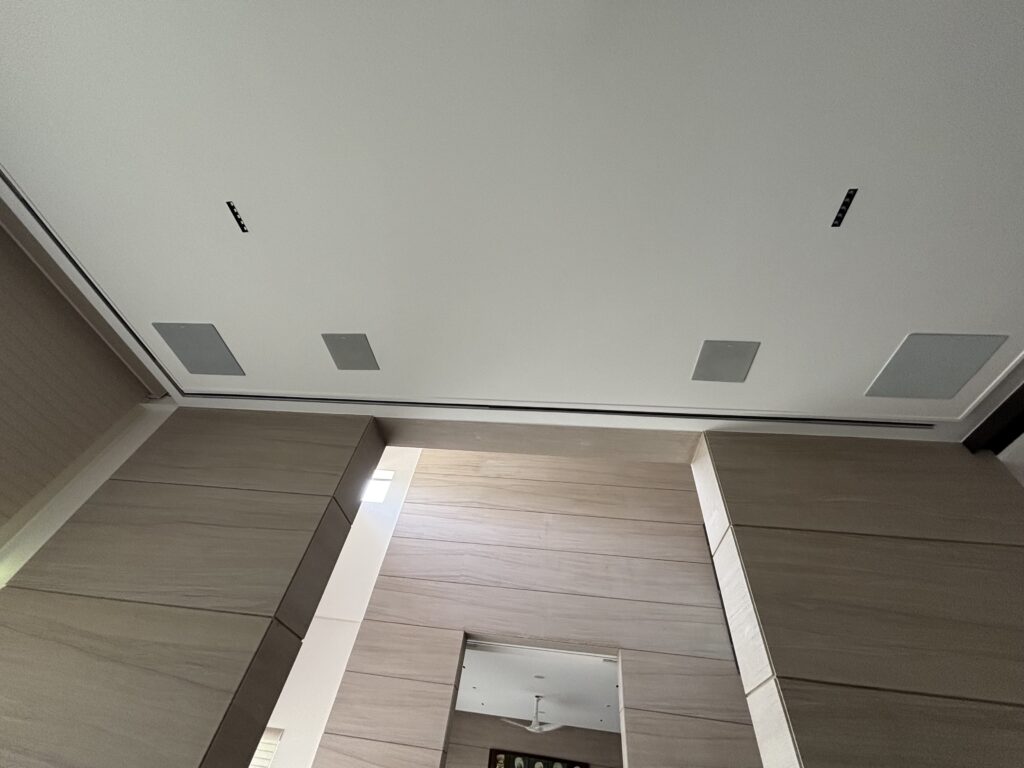

To maintain a completely flush, minimalist ceiling line, we selected an all-in-ceiling high-end architectural series from France.
- Focal 300 ICLCR5 (5 Units): Deployed for the critical Front Left, Center, Right, and Side Surround channels. These specialized acoustic enclosures feature adjustable aim to direct pristine dialogue and a wide soundstage precisely toward the listening position.
- Focal 300 ICW6 (2 Units): Dedicated overhead height channels that deliver seamless, three-dimensional Dolby Atmos object tracking (e.g., overhead flyovers, environmental ambience).

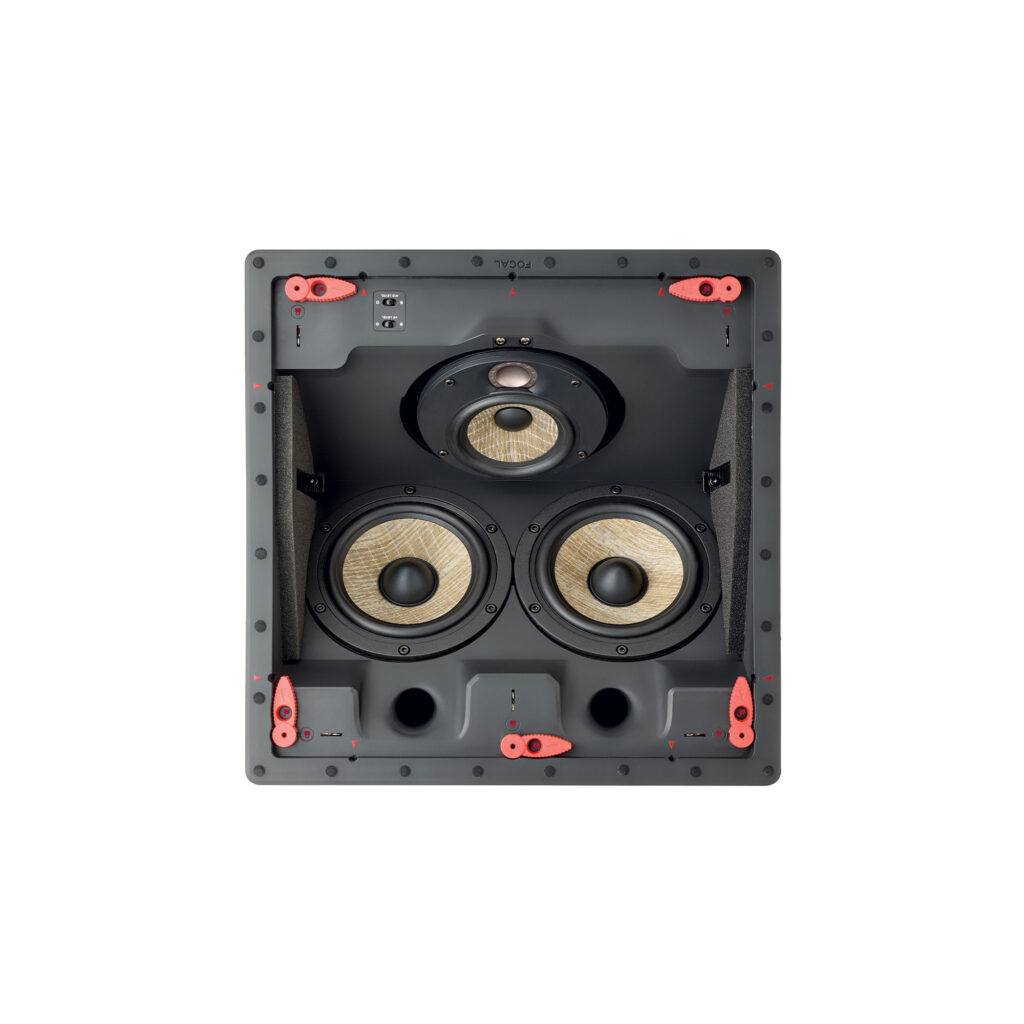

Looking at the internal structure of the Focal 300 ICLCR5 used in this project, you can see why it is far superior to standard ceiling speakers:
- The Built-In Back Box Architecture: Standard open-back speakers treat your empty ceiling cavity as a chaotic speaker cabinet. This causes the sound to distort, vibrate the POP sheets, and leak into upper floors. As shown in the product profile, the 300 ICLCR5 features a fully sealed, structurally isolated rear enclosure. This controls internal air volume perfectly, ensuring tight, highly predictable, and punchy theater performance every single time.
- The 45-Degree Fixed Acoustic Baffle: The face view reveals that the dual Flax-cone woofers and the inverted dome tweeter are mounted on a precisely angled internal baffle. Instead of firing straight down, the sound waves are projected forward and downward at an angle.
- The Adjustable Waveguide & Tweeter Level Switches: To compensate for different ceiling heights and seating distances, the center mid-high assembly can be physically rotated and adjusted via high-frequency ($+/-3\text{dB}$) toggles.
The Math: Creating the Acoustic “V-Spot”
[FLUSH CEILING AUDIO] ───┐
│ \ Angled Acoustic Wavefront
│ \ (Zero Floor Reflection)
▼ ▼
[HARD MARBLE FLOOR] [ELITE SEATING AREA]
(Reflects Raw Sound (Pristine Dialogue &
If Fired Straight Down) Perfect Phantom Center)
The true genius of this layout lies in the calibration. Because the lounge features highly reflective premium marble flooring, firing a traditional speaker straight down would create immediate acoustic reflections, making dialogue sound muddy and echoing.
By mathematically mapping the seating layout, Team AV Consultants positioned these angled enclosures so that their acoustic wavefronts bypass floor reflections entirely and converge directly at ear level in the sitting area.
The Result: Even though there isn’t a single speaker visible around the 120-inch Elite Screens CLR display, your brain is completely tricked into hearing crystal-clear dialogue and panning sound effects coming straight out of the middle of the screen.
4. Low-Frequency Precision
- Dual JL Audio D110 Subwoofers: Rather than relying on a single subwoofer—which can introduce acoustic dead zones—a dual sub configuration was engineered. This guarantees perfectly uniform, fast, and tactile low-frequency distribution across every seat in the lounge.
Clean Power & Signal Integrity Infrastructure
An audiophile-grade system is only as stable as its underlying infrastructure. AV Consultants engineered the system utilizing:
- Clicktronic 2.5mm (0.5% Silver Copper) Cables: Ensures minimal resistance and maximum signal clarity across all speaker runs.
- AudioQuest HDMI & Subwoofer Cables: High-bandwidth, heavily shielded interconnects for jitter-free 4K HDR video and pristine low-frequency data transfer.
- Taga Harmony DC-1000 Power Conditioner: Protects sensitive internal circuitry against voltage spikes common to the region while filtering out electromagnetic line noise.

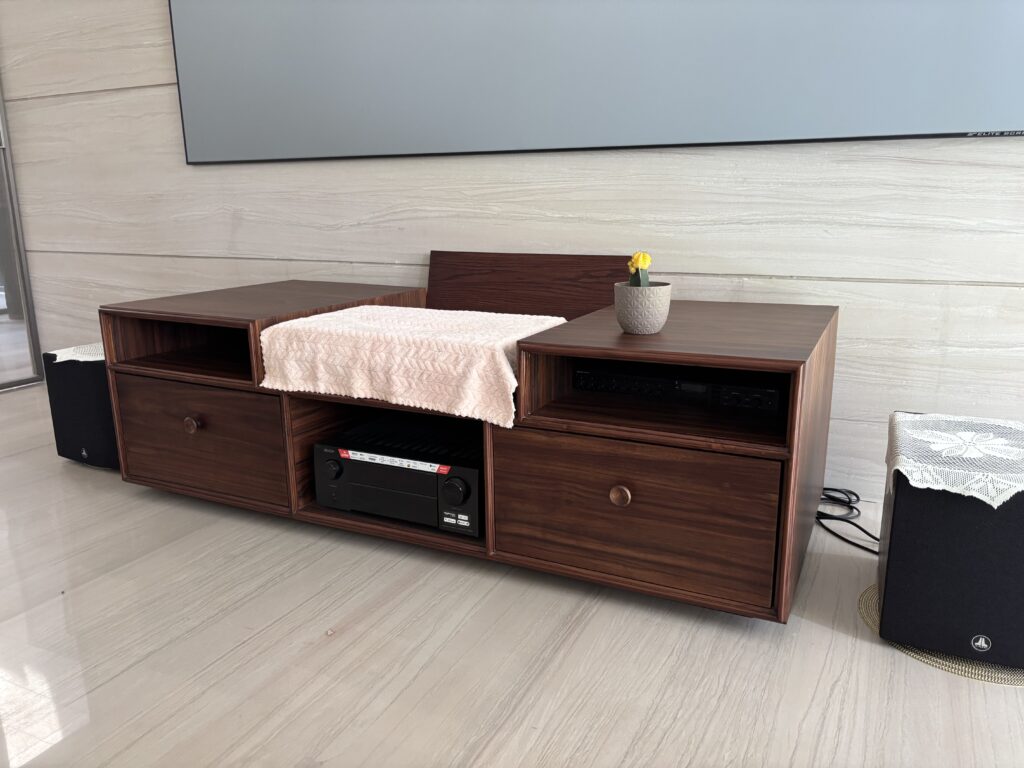

- Custom AV Cabinetry: Engineered in-house to accommodate thermal dissipation, manage cable infrastructure, and blend seamlessly into the room’s formal decor.
The Invisible AV Advantage
With over 17 years of precision calibration and cinema design experience, AV Consultants continues to lead the North India market by prioritizing performance-first engineering. This Sirhind installation highlights a growing trend among luxury homeowners in Punjab and the Chandigarh Tricity: the shift toward architectural, hidden audio solutions that deliver zero compromise on acoustic impact.
This project is a prime example of why luxury homeowners, premium architects, and interior designers across Chandigarh, Mohali, Panchkula, and Punjab trust AV Consultants. True luxury isn’t just about buying expensive equipment—it’s about the precise engineering of the invisible elements to create perfection.
