By Deepak Saxena & AV Consultants Engineering Team

In the world of luxury home cinema, there is a clear distinction between a room filled with premium equipment and a perfectly engineered cinematic environment. At AV Consultants, our philosophy has always been that hardware is merely the paint, while the room itself is the canvas. This recent project in North India represents a complete ground-up transformation, where we designed and installed a luxury home cinema from scratch .Project Overview: Built from Scratch, Designed Without Compromise

This was not a retrofit. This was a complete transformation from bare space to high-performance cinema.

Room Specifications

Height: 11 feet (clear ceiling)

Width: 12 feet

Length: 25 feet

Client Requirement

“I want extraordinary sound and extreme picture quality. No compromise.”

This single line defined every engineering decision.

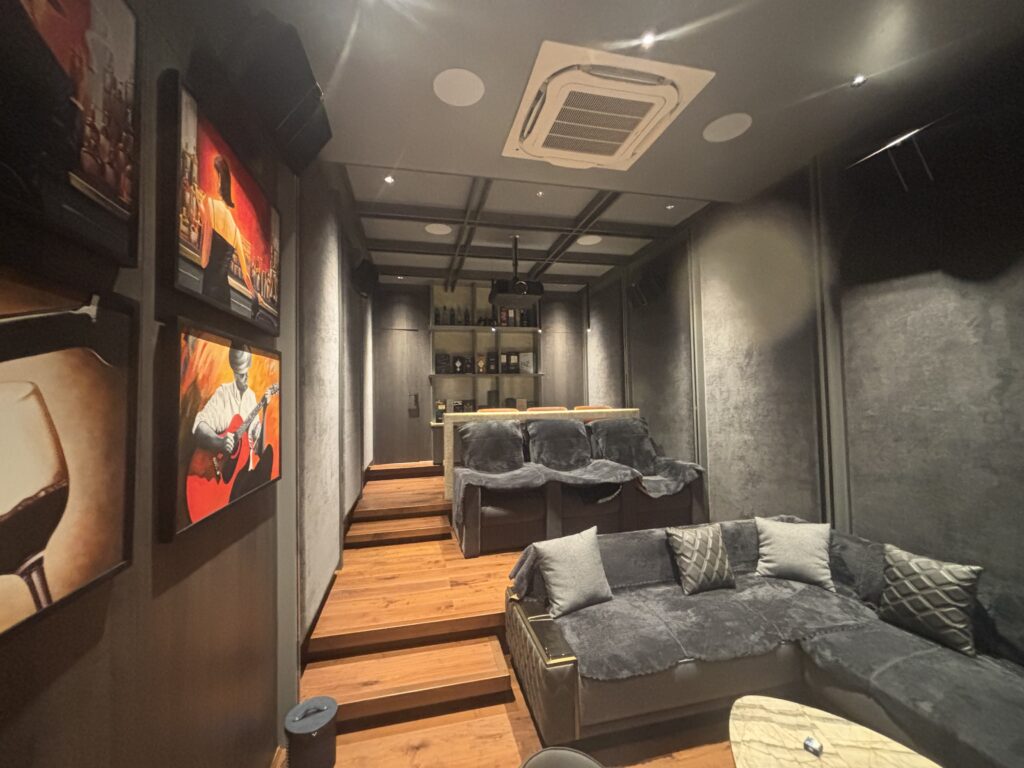

The design approach was centered around what we call “Stealth Performance,” where high-end engineering disappears into a minimalist aesthetic. A grey-themed interior was chosen not only for its luxurious appeal but also for its ability to enhance visual contrast for projection while seamlessly integrating acoustic treatment. The layout was carefully engineered into three functional zones: a front row with casual sofa seats & a middle Area with 3 motorized cloth fabric recliners from living sedia and a rear bar section with three bespoke chairs, transforming the back of the room into a social hub without compromising audio immersion.

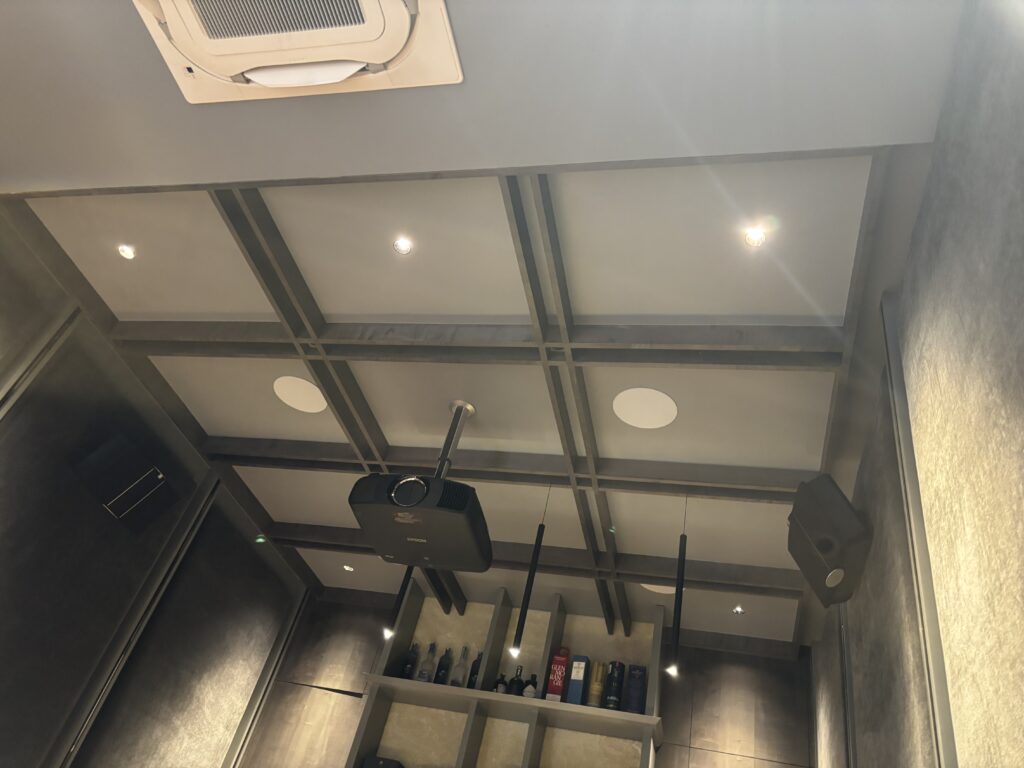

At the heart of the visual system is the Epson QB1000, paired with a Grandview 133-inch perforated screen. This combination allows the front LCR speakers to be placed behind the screen, ensuring that dialogue is perfectly anchored to the on-screen action rather than coming from below. In a grey-treated room, the projector delivers exceptional contrast, deep blacks, and vibrant highlights, creating a true cinematic window rather than just an image on a wall.The QB1000 is an excellent choice for a professional-grade theater where you want the punch of high brightness without sacrificing the refined black levels and color accuracy required for critical movie watching

Epson QB 1000 specifications :-

Core Specifications

• Brightness: 3,300 Lumens (Color and White Brightness).
• Contrast Ratio: 5,000,000:1 (Dynamic).
• Light Source: Laser-array with a 20,000-hour lifespan.
• Resolution: 4K UHD (3840 x 2160) using advanced 4-way pixel-shifting.
• Video Processor: 32-bit Epson QZX Picture Processor.
• Gaming: Supports 4K/120Hz with a low input lag of under 20ms.

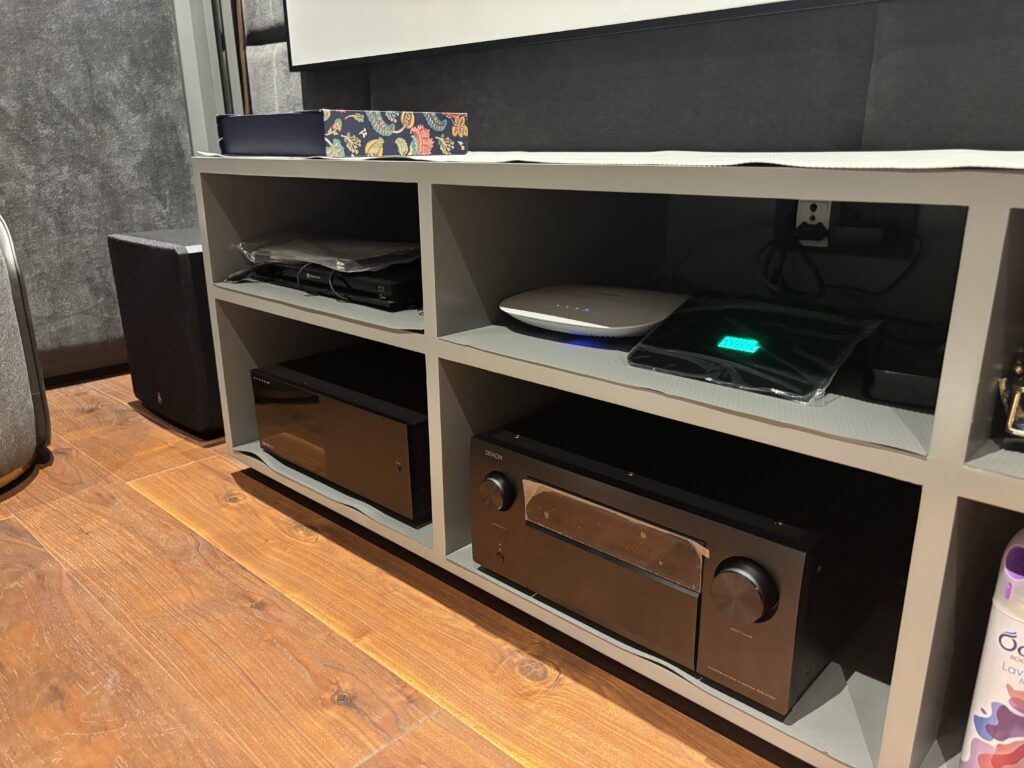

The audio system was engineered as a 7.2.4 immersive environment powered by the Denon AVC-A10H, which handles complex object-based formats like Dolby Atmos and DTS:X Pro with precision. To ensure maximum dynamic performance, we integrated an external 5-channel amplifier from Anthem, offloading the front stage and providing the headroom required for high-impact cinematic moments. The speaker layout includes LCR behind the screen, four side surrounds, four Atmos speakers, and a uniquely engineered pair of inclined rear surrounds that are angled specifically to deliver proper coverage to the bar seating area—an often-overlooked detail in most installations.

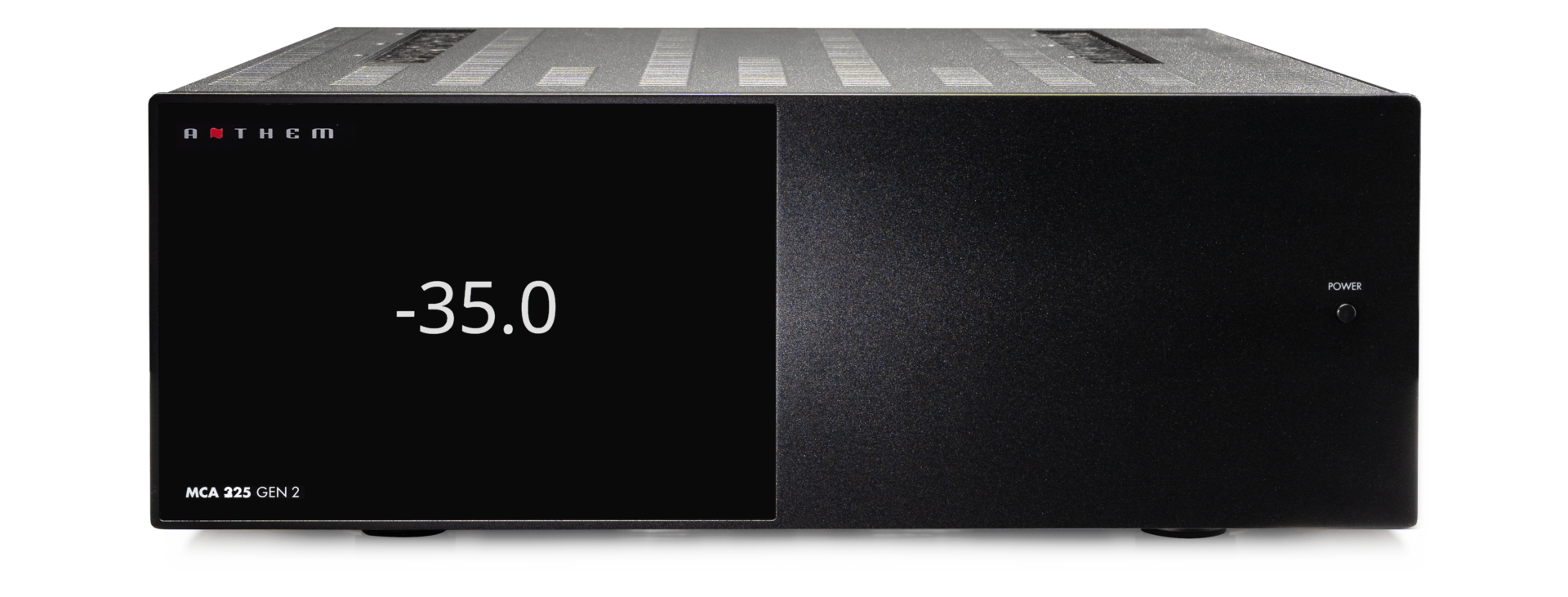

The Anthem Advantage: With a dedicated large-scale toroidal transformer, the Anthem provides 225 watts per channel into 8 ohms (and 400W into 4 ohms) with all channels driven. This ensures that the front LCR (Left, Center, Right) and primary surrounds never “run out of breath,” maintaining crystal-clear impact even at reference volume levels.

One of the most critical decisions in this project involved the subwoofer selection. The client was initially inclined towards the SVS SB-4000 due to its larger size and higher published specifications.

The client was strongly inclined towards:

• SVS SB-4000 x 2 pc
• pp control via Bluetooth.
• 13.5-inch high-excursion driver.
• Sealed cabinet for tight bass.
• Frequency response down to 19 Hz.
• XLR and RCA input options.

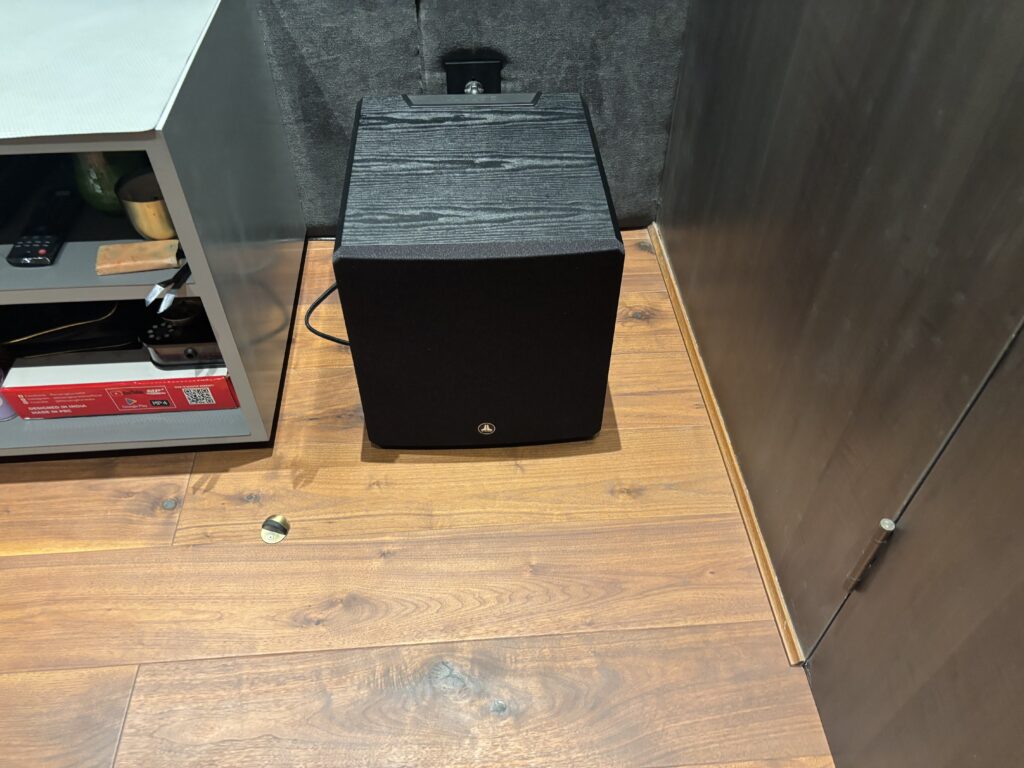

Because of More aggressive specifications .However, based on our experience and engineering approach, we recommended and installed dual JL Audio e112 x 2 units.

• It has High-fidelity powered subwoofer speakers.
• It has Front-firing, long-throw 12″ woofer.
• It gives 1500-watt sub delivers reverberating bass.
• It has long-excursion 12″ driver delivers pinpoint accuracy.
• It has renders bass a superb definition, texture, and musicality.

In this project, our client was understandably drawn to the SVS SB-4000 for its massive 13.5-inch driver and 4000W peak output. On paper, it looks like a titan. However, my approach at AV Consultants is built on 17 years of precision engineering and real-world calibration. I’ve learned that while specifications are measured in sterile labs, performance is experienced inside the unique acoustic boundaries of your room.

After nearly two decades of tuning immersive rooms, I have found that the most impressive bass isn’t the loudest—it’s the fastest.

• The Problem with “Big” Bass: Larger, high-output subwoofers often suffer from “overhang”—a phenomenon where the driver continues to vibrate after the signal has stopped. In a 7.2.4 stealth cinema, this creates a “boomy” mask that muddies the dialogue and obscures the fine details of the Atmos canopy.
• The JL Audio e112 Advantage: We recommended and installed dual JL Audio e112 units specifically for their surgical control. These subwoofers feature a proprietary high-excursion driver that exhibits incredible attack and decay characteristics.

“Anyone can sell you a box with a high wattage rating. Our job is to engineer a system where the hardware disappears, leaving only the emotional impact of the film. We chose the JL Audio e112 because, in a 12×25 foot room, control is more powerful than raw output.” — Deepak Saxena

Using two subwoofers instead of one allowed us to eliminate room modes, improve bass consistency across all seating positions, and create a uniform low-frequency field. The system was carefully tuned with an 80Hz crossover, ensuring seamless integration between the subwoofers and the main speakers. The result is bass that is not just powerful, but clean, articulate, and immersive. As we often explain, one large subwoofer may impress on specifications, but dual properly integrated subwoofers create a far superior listening experience.

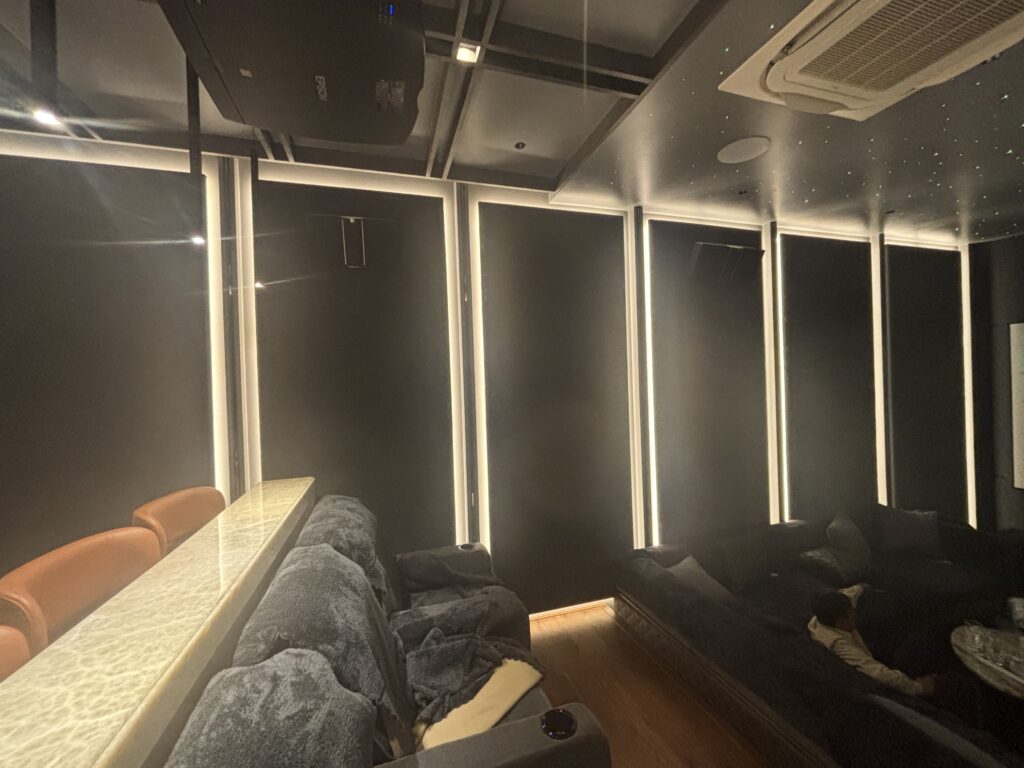

Lighting and ambience were designed to complement the technical performance. Subtle linear lighting elements define the architecture without introducing reflections, while the dark matte finishes maintain visual focus on the screen. Every detail was carefully considered to ensure that the technology remains invisible while the experience remains unforgettable.

When seated in the center recliner, the result is transformative. The room disappears, the screen becomes a window into another world, and the sound envelops the listener in a seamless 360-degree sphere. This is not just a home theater—it is a fully engineered cinematic experience where every component, every angle, and every decision contributes to a single goal: emotional impact.

This project stands as a testament to the philosophy of Deepak Saxena, where engineering meets artistry and technology serves experience. It reinforces a simple truth—great systems are built with products, but exceptional cinemas are built with knowledge, precision, and vision.

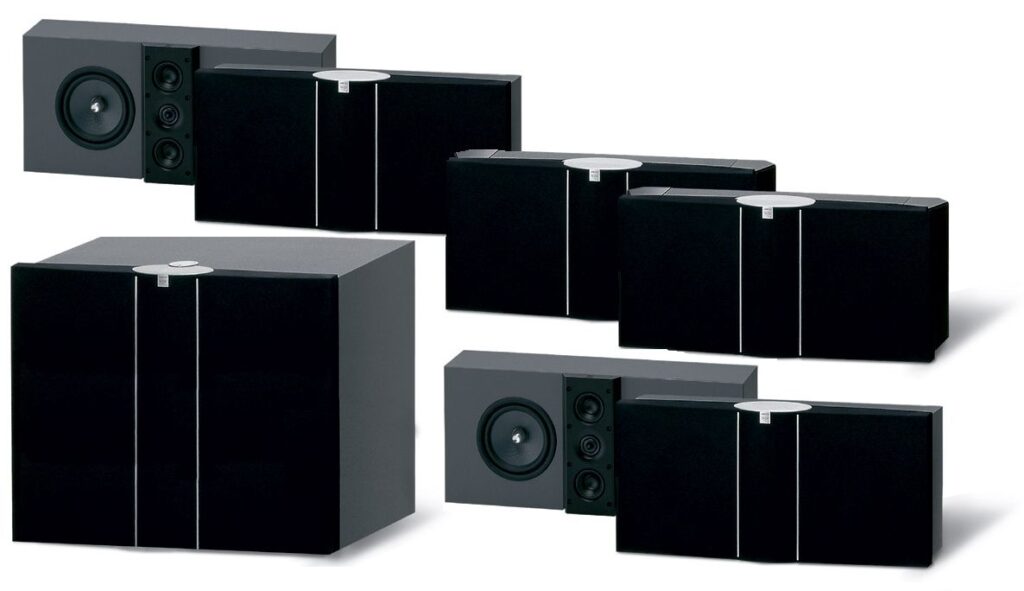

The Speaker system is from JAMO 7.2.4 THX ultra II (Provided by the client his old set of speakers)

Why Jamo THX Ultra II for This 12×25 Foot Room?

The Legacy Integration: Breathing New Life into THX Ultra II Legends

A common misconception in luxury home cinema is that “newer is always better.” However, at AV Consultants, we believe in the intrinsic value of high-performance engineering. In this project, the client possessed a cherished set of Jamo THX Ultra II speakers. Rather than discarding these cinema-grade monitors, we chose to integrate them as the high-output foundation of a modern 7.2.4 immersive environment.

The challenge? Taking 20-year-old THX standards and making them sing in a 2026 Dolby Atmos world.

1. The Power of Identical LCR (Behind the Screen)

The Jamo THX ultra II is a masterpiece of symmetrical design. We placed three identical units behind the Grandview 133-inch perforated screen.

• The Benefit: Because these units are perfectly timbre-matched, the “panning” of objects—like a jet screaming across the screen in Top Gun—is seamless. There is no shift in tonal quality as the sound moves, which is essential for the “Invisible Cinema” effect where the screen itself becomes the source of the sound.

2. Solving the “25-Foot Room” Problem with Dipoles

In a room of this length (25 feet), using standard monopole speakers for side surrounds can create “hot spots,” where the listener closest to the speaker is overwhelmed while the others hear nothing.

• The Solution: We utilized the client’s SUR Dipoles. These create a diffused, ambient sound field. This ensures that the “middle casual” seating row feels enveloped in the atmosphere without being distracted by a localized speaker “pointing” at them.

3. High-Current Stability: The Anthem Bridge

The Jamo speakers is a 4-ohm system designed for massive dynamic peaks. To ensure these legacy speakers performed at their absolute ceiling, we used the Anthem 5-channel amplifier to drive the front stage. This offloads the heavy lifting from the Denon A10H, providing the current needed to handle the Jamo’s 400Hz crossover logic without distortion or thermal compression.

“Integrating a client’s existing high-end gear isn’t about saving money—it’s about respecting great engineering. The Jamo THX system was designed for the ‘Golden Era’ of THX. By pairing it with modern Anthem amplification and JL Audio low-frequency control, we created a hybrid system that outperforms many all-new installations. We didn’t just ‘use’ his old speakers; we optimized them for the next decade of cinema.”

System Architecture at a Glance

Component	Brand/Model	Role
Projector	Epson QB1000	4K Laser Visuals
Screen	Grandview 133″ Perforated	Acoustic Transparency
Amplification	Anthem 5-Channel	High-Current Front Stage
Processor	Denon AVC-A10H	13.2 Channel Processing
Speakers	Jamo THX Ultra II	Legacy High-Output Array
Subwoofers	Dual JL Audio e112	Precision Low-Frequency Control
Seating	Living Sedia	Motorized Fabric Comfort

The Final Verdict: Engineering Meets Artistry

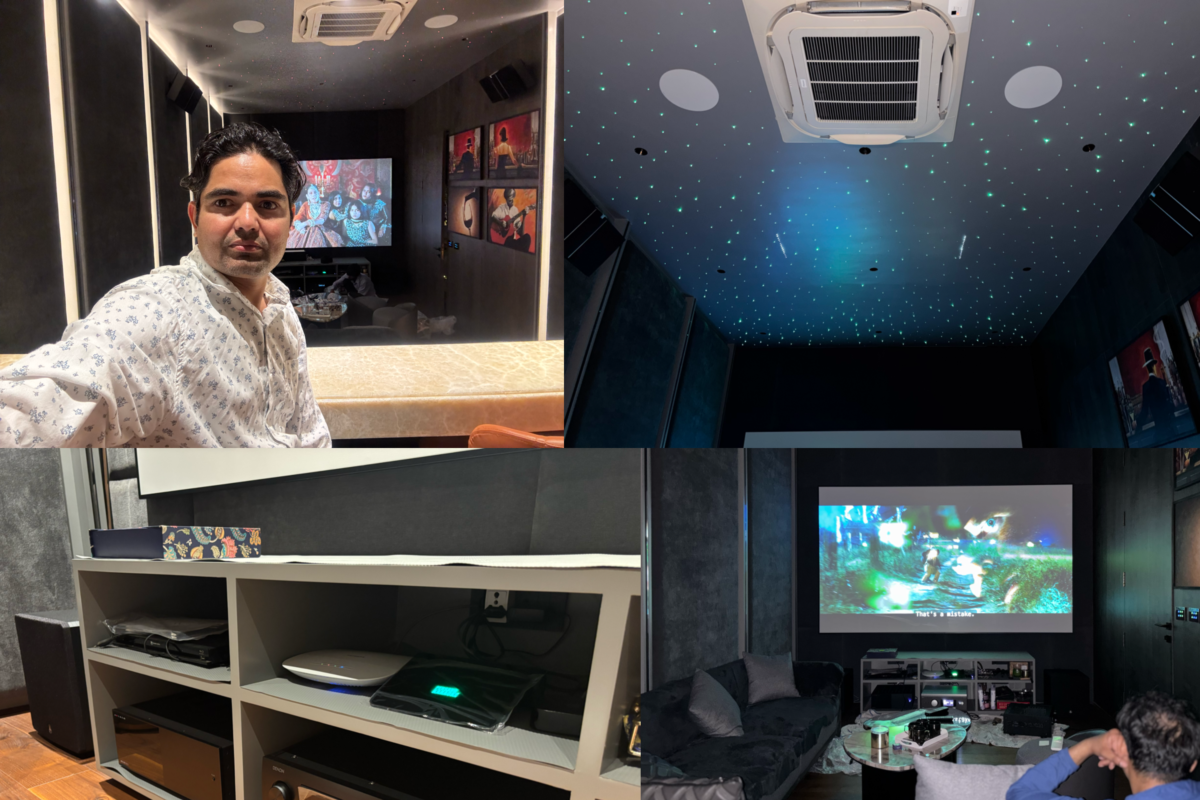

Calibration is the defining factor of our work. At AV Consultants, installation is 50% of the job; the other 50% is precision tuning. From the fiber optic star ceiling (which doubles as an acoustic absorber) to the subtle linear lighting that prevents screen reflections, every millimeter of this room was calculated.

The Workmanship Behind Every Detail

The hallmark of AV Consultants is that no two rooms are treated the same. We don’t use “off-the-shelf” kits.

• Precision Joinery: Every acoustic frame was custom-built on-site to ensure a flush, seamless fit with the architectural lighting.
• Material Science: We selected specific fabric porosities that allow sound to pass through to the treatment while maintaining the luxurious matte-grey visual finish.

When seated in the center recliner, the room simply disappears. You are no longer in a villa in North India; you are inside the movie. The client’s “hell-bent” skepticism was replaced by total immersion after the first demo.

This project stands as a testament to the philosophy of Deepak Saxena, where engineering meets artistry and technology serves experience. It reinforces a simple truth—great systems are built with products, but exceptional cinemas are built with knowledge, precision, and vision.

“Great systems are built with products, but exceptional cinemas are built with knowledge, precision, and vision.”

— Deepak Saxena
