Professional Subwoofer Comparison for High-End Home Cinemas (2026)
When selecting a reference-grade subwoofer for a premium home theater, two models often come into discussion: the powerful SVS flagship and the legendary JL Audio Fathom series. Both subwoofers are engineered to deliver deep and impactful bass, but their design philosophy and real-world usability are very different.
Based on 17+ years of home theater design and calibration experience, the team at AV Consultants, led by Deepak Saxena, has worked with many high-performance subwoofer systems in dedicated cinema rooms across India. From this professional integration perspective, the comparison between these two subwoofers reveals some important practical differences.
Understanding the Role of a Reference Subwoofer
Before comparing the two models directly, it is important to understand what separates a reference-grade subwoofer from ordinary consumer products. In high-performance audio systems, the subwoofer must perform several tasks simultaneously.
First, it must reproduce extremely low frequencies with accuracy and control. Human hearing can extend down to roughly 20 Hz, but many modern movie soundtracks and music recordings include information even below that range. A reference subwoofer must handle these frequencies without distortion or loss of detail.
Second, the subwoofer must integrate seamlessly with the main speakers. Poor integration often results in “boomy” bass or uneven response across the listening area. Achieving smooth integration requires advanced signal processing, proper enclosure design, and sometimes room correction technology.
Third, the subwoofer must maintain composure at high output levels. Action movies and large orchestral music can demand enormous dynamic range. A high-end subwoofer must deliver this power without compression or audible strain.
Finally, the subwoofer must remain musically accurate. Audiophiles often emphasize “tight” and “textured” bass rather than simply loud bass. Musical accuracy requires careful driver engineering, low distortion, and precise control of cone movement.
Both the SVS SB17-Ultra R|Evolution and the JL Audio Fathom F113v2 attempt to meet these demanding requirements, but they do so in slightly different ways.
1. Size, Design & Installation Practicality
The SVS SB17-Ultra R Evolution uses a very large 17-inch driver and oversized cabinet. While this helps deliver strong low-frequency output, the physical cabinet is extremely large and can be challenging to integrate in many real home theater spaces.
The JL Audio Fathom F113v2, in contrast, uses a 13.5-inch ultra long-throw driver inside a much more compact and dense enclosure. Despite its smaller dimensions, the cabinet is extremely heavy due to its thick construction and high-quality internal components.
Engineering Insight
While the SVS uses a larger 17-inch driver, the JL Audio driver is engineered with extremely long excursion and superior control. The smaller enclosure combined with higher cabinet density helps reduce resonance and improves bass clarity.
Professional Insight
While SVS provides more raw amplifier power, JL Audio focuses on driver control and distortion management, which is often more important for accurate bass reproduction.
Design Philosophy of SVS
SVS is known for designing subwoofers that push the limits of output capability while remaining relatively accessible in price compared to many boutique brands. The company’s engineering approach often focuses on maximizing displacement—the amount of air a driver can move—because this directly influences how loud and powerful a subwoofer can sound.

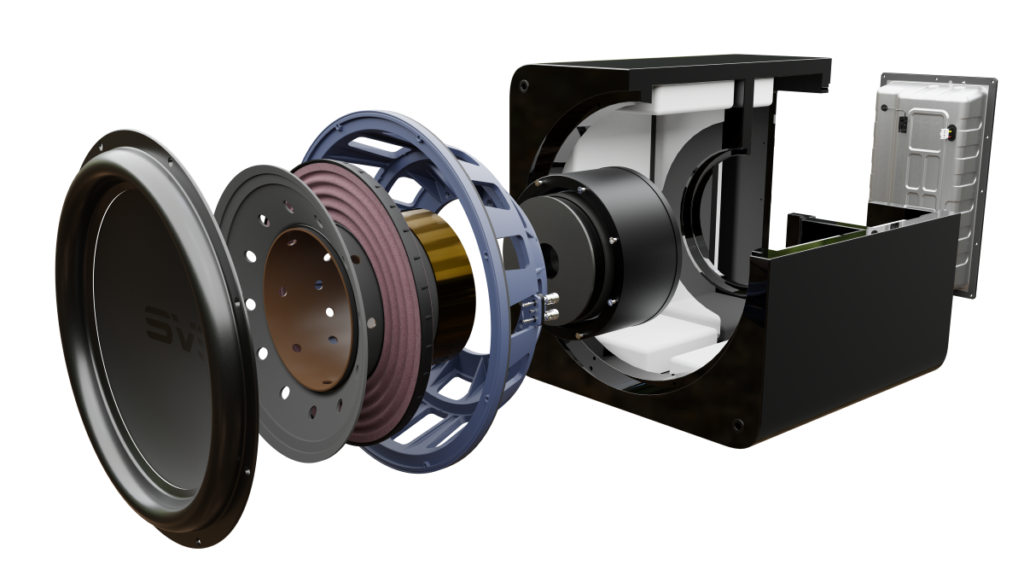

The SB17-Ultra R|Evolution represents the latest evolution of SVS sealed-cabinet technology. The model uses an enormous 17-inch driver paired with a high-power amplifier and sophisticated digital signal processing. By combining a large driver surface area with significant amplifier power, SVS aims to deliver extremely high sound pressure levels even at very low frequencies.

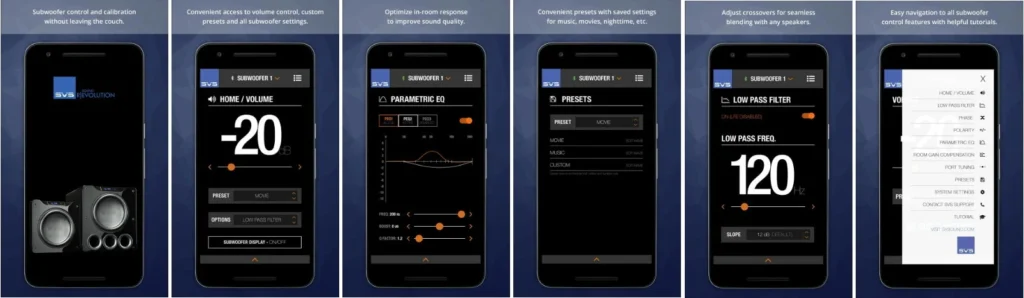

Another hallmark of SVS design is user accessibility. Many SVS subwoofers include smartphone app control, allowing users to adjust crossover settings, parametric equalization, phase alignment, and other parameters from their listening position. This flexibility can be extremely useful when integrating a subwoofer into complex home theater systems.
The SB17-Ultra R|Evolution is therefore built as a performance powerhouse. Its large driver and robust amplification are intended to produce massive bass output capable of energizing large rooms and delivering cinematic impact.
Design Philosophy of JL Audio
JL Audio approaches subwoofer design from a slightly different perspective. The company originally built its reputation in the high-end car audio world, where precision driver engineering and extremely long cone excursion were necessary to achieve deep bass in confined spaces.
This expertise translated into the home audio market with the introduction of the Fathom series. JL Audio places a strong emphasis on driver technology, particularly the ability of a driver to move long distances while remaining perfectly controlled. Long excursion allows a smaller driver to move as much air as a larger driver, but only if the motor structure and suspension are engineered to maintain linearity.

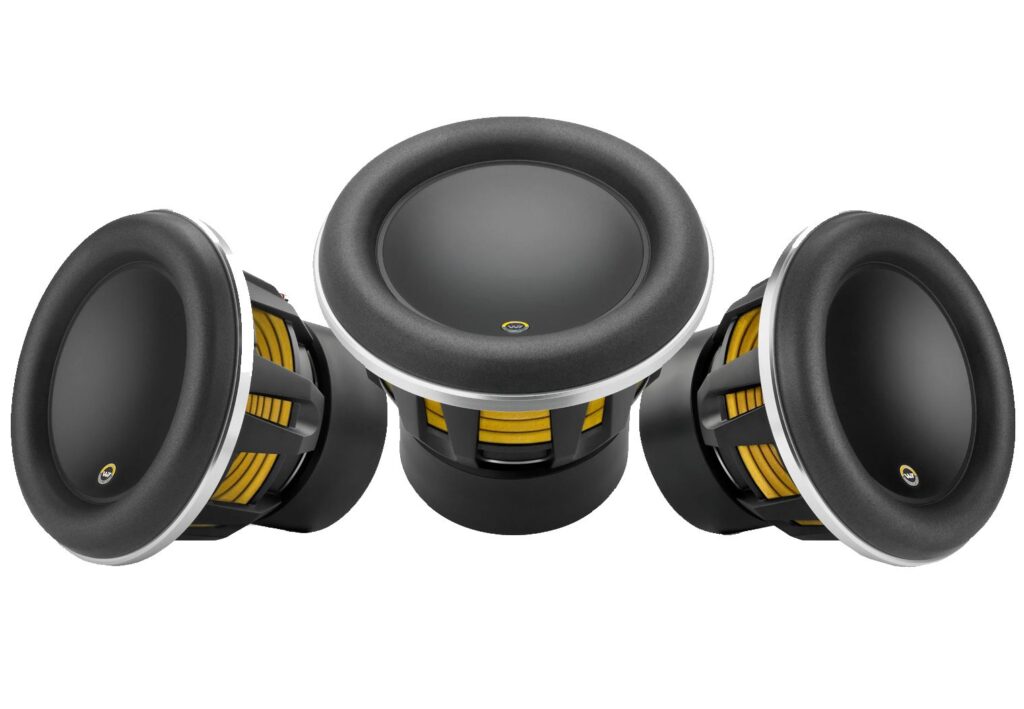

The Fathom F113v2 uses JL Audio’s proprietary W7 driver platform. This driver design incorporates advanced features such as a massive motor assembly, carefully engineered suspension geometry, and cooling systems that allow the driver to maintain performance even during demanding passages.
Another key component of JL Audio’s design philosophy is room optimization. Low-frequency sound interacts strongly with room boundaries, often creating peaks and dips in bass response. To address this issue, the Fathom F113v2 includes Digital Automatic Room Optimization (D.A.R.O.), a calibration system that measures room response and applies corrective equalization.
As a result, JL Audio’s approach prioritizes precision, control, and integration rather than simply maximizing driver size.
Compact Design with Exceptional Density
One of the first things installers notice when comparing these two subwoofers is their physical design.
The SVS SB17-Ultra R Evolution uses a large cabinet to accommodate its 17-inch driver, making it physically imposing and difficult to integrate into many home theater spaces.
By contrast, the JL Audio Fathom F113v2 uses a 13.5-inch ultra-long-throw driver inside a much more compact enclosure.
Despite being smaller, the JL Audio cabinet is actually extremely dense and heavy, which reflects the thick cabinet walls, extensive internal bracing, and premium materials used in its construction.
From an installation standpoint, the benefits of a compact yet dense enclosure are significant:
• Easier placement in the room
• Greater flexibility in subwoofer positioning
• Cleaner aesthetic integration
• Better compatibility with dual-subwoofer layouts
In real-world installations, equipment that is easier to position often produces better acoustic results, because the installer has more flexibility to place the subwoofer at the optimal location.
Core Specification Comparison
| Feature | SVS SB17-Ultra R Evolution | JL Audio Fathom F113v2 |
|---|---|---|
| Driver Size | 17 inch high-excursion driver | 13.5 inch ultra-long-throw driver |
| Enclosure Type | Sealed | Sealed |
| Amplifier Power | 2800W RMS / 6000W peak | ~3000W peak amplifier |
| Frequency Response | 15Hz – 320Hz | approx 20Hz – 130Hz |
| DSP Processing | Advanced DSP with app control | JL proprietary DSP |
| Room Correction | App EQ & presets | Automatic Room Optimization (ARO) |
| Cabinet Size | Large cabinet | Compact cabinet |
| Weight | ~56 kg | ~59 kg |
| Dimensions | 20 x 19.5 x 21.2 in | approx 19 x 16 x 19 in |
| Connectivity | RCA / trigger / Bluetooth control | RCA / XLR / calibration mic |
| Typical Price (India) | ~₹4.7–5 lakh | ~₹5.5–6.3 lakh |
Bass Precision and Transient Accuracy
Bass Performance
| Parameter | SVS SB17 Ultra | JL Audio F113v2 | Winner |
|---|---|---|---|
| Bass Extension | Deeper extreme low bass | Slightly less extension | SVS |
| Bass Accuracy | Very good | Exceptional | JL Audio |
| Transient Response | Good | Extremely fast | JL Audio |
| Bass Texture | Powerful | Detailed and refined | JL Audio |
| Distortion Control | Good | Excellent | JL Audio |
Bass quality is not simply about how loud a subwoofer can play.
The most important characteristic of a high-end subwoofer is precision.
Precision bass means that the subwoofer can reproduce low frequencies accurately, quickly, and without distortion. This allows the subwoofer to keep up with fast-moving sound effects and complex musical passages.
The JL Audio Fathom F113v2 is widely respected for its exceptional transient response, meaning it can start and stop extremely quickly.
This results in bass that sounds:
• tight
• controlled
• detailed
• natural
In contrast, subwoofers designed primarily for maximum output may sometimes produce bass that feels looser or less controlled, especially in smaller rooms.
From the perspective of AV Consultants, precision bass reproduction is far more valuable than simply having a larger driver.
Room Integration & Calibration
| Feature | SVS | JL Audio | Winner |
|---|---|---|---|
| Room Optimization | App EQ | Automatic Room Optimization (ARO) | JL Audio |
| Calibration Simplicity | Moderate | Very easy | JL Audio |
| Multi-seat bass consistency | Good | Excellent | JL Audio |
| Integration with speakers | Good | Seamless | JL Audio |
Installation Insight
According to Deepak Saxena, room interaction is one of the biggest challenges with subwoofers.
The ARO system in JL Audio significantly simplifies bass tuning, making it easier to achieve balanced response in real rooms.
SVS gives app based integration that need precise accuracy .
Music Performance
| Parameter | SVS | JL Audio | Winner |
|---|---|---|---|
| Bass Detail | Good | Exceptional | JL Audio |
| Speed | Good | Extremely fast | JL Audio |
| Tonal accuracy | Good | Excellent | JL Audio |
| Integration with speakers | Good | Outstanding | JL Audio |
Listening Impression
Music lovers often prefer the JL Audio Fathom series because its bass is more articulate and controlled, especially with acoustic instruments.
Practical advantages of the JL Audio design
• Easier placement in the room
• Better aesthetic integration with theater interiors
• Less space consumption near screens or seating
• More flexibility for dual-subwoofer placement
For professional installers, compact high-performance equipment is often easier to optimize inside a room.
Advantage: JL Audio
Performance Comparison
| Category | Winner | Reason |
|---|---|---|
| Cabinet Design | JL Audio | Smaller but denser cabinet |
| Installation Flexibility | JL Audio | Easier to place in rooms |
| Bass Precision | JL Audio | Extremely tight and controlled bass |
| DSP Control | SVS | More app-based tuning features |
| Output Power | SVS | Larger driver and high output |
| Musical Accuracy | JL Audio | Faster transient response |
| Ease of Calibration | JL Audio | ARO auto optimization |
| Aesthetic Integration | JL Audio | Compact premium design |
Precision & Bass Control
One of the biggest strengths of the JL Audio Fathom series is bass precision and transient accuracy.
The F113v2 is engineered for extremely controlled low-frequency reproduction using:
• long-throw W7-derived driver technology
• powerful proprietary amplifier
• ultra-rigid cabinet construction
• advanced internal DSP control
This results in tighter and more articulate bass, which becomes particularly noticeable during complex soundtracks and music playback.
Compared to many large-driver subwoofers that emphasize sheer output, the JL Audio approach prioritizes control, speed, and accuracy.
For many high-end theaters and audiophile systems, bass quality is more important than simply having a larger driver.
Advantage: JL Audio
Final Verdict
The SVS SB17-Ultra R Evolution offers very strong output thanks to its massive driver. However, its large cabinet size can make placement and room integration more difficult in many real theaters.
The JL Audio Fathom F113v2, on the other hand, delivers reference-quality bass from a more compact and extremely dense enclosure, making it easier to integrate into premium cinema rooms while maintaining exceptional bass precision.
Final Comparison Score
| Category | Winner |
|---|---|
| Engineering | JL Audio |
| Precision | JL Audio |
| Installation | JL Audio |
| Musical Performance | JL Audio |
| Room Integration | JL Audio |
| Overall Performance | JL Audio F113v2 |
Final Verdict by AV Consultants
After evaluating both flagship subwoofers in terms of engineering, installation practicality, bass precision, room integration, and long-term performance, the professional opinion from Deepak Saxena is clear.
Both the SVS SB17-Ultra R|Evolution and the JL Audio Fathom F113v2 are capable of delivering impressive low-frequency performance, but they are designed with different priorities. The SVS model focuses on maximum driver size and raw output, which can produce powerful bass in very large rooms. However, its large cabinet footprint can make placement and room integration more challenging in many real-world home theater environments.
The JL Audio Fathom F113v2, on the other hand, represents a more refined and balanced engineering approach. Despite its smaller size, the F113v2 uses an extremely advanced long-throw driver, a dense cabinet structure, and JL Audio’s Automatic Room Optimization system to deliver exceptionally controlled, tight, and accurate bass reproduction. Its compact design also makes installation significantly easier, allowing professional installers to place the subwoofer in the optimal acoustic position for the best performance.
From the perspective of professional home theater design and calibration, precision, control, and seamless integration with the main speakers are often more important than simply having the largest driver. In this regard, the JL Audio Fathom F113v2 consistently delivers cleaner bass response, better transient accuracy, and more predictable room behavior.
🏆 AV Consultants Final Recommendation
Based on extensive installation experience and real-world performance evaluation, AV Consultants recommends the JL Audio Fathom F113v2 as the superior overall subwoofer for premium home theater systems. It offers a rare combination of power, precision, compact design, and installation flexibility, making it one of the most reliable and refined subwoofers available today.
As Deepak Saxena of AV Consultants often advises clients, the best subwoofer is not necessarily the one with the biggest driver, but the one that delivers the most accurate and well-integrated bass performance within the room. By that standard, the JL Audio Fathom F113v2 stands out as a reference-grade solution for serious home cinema enthusiasts and luxury theater installations.
